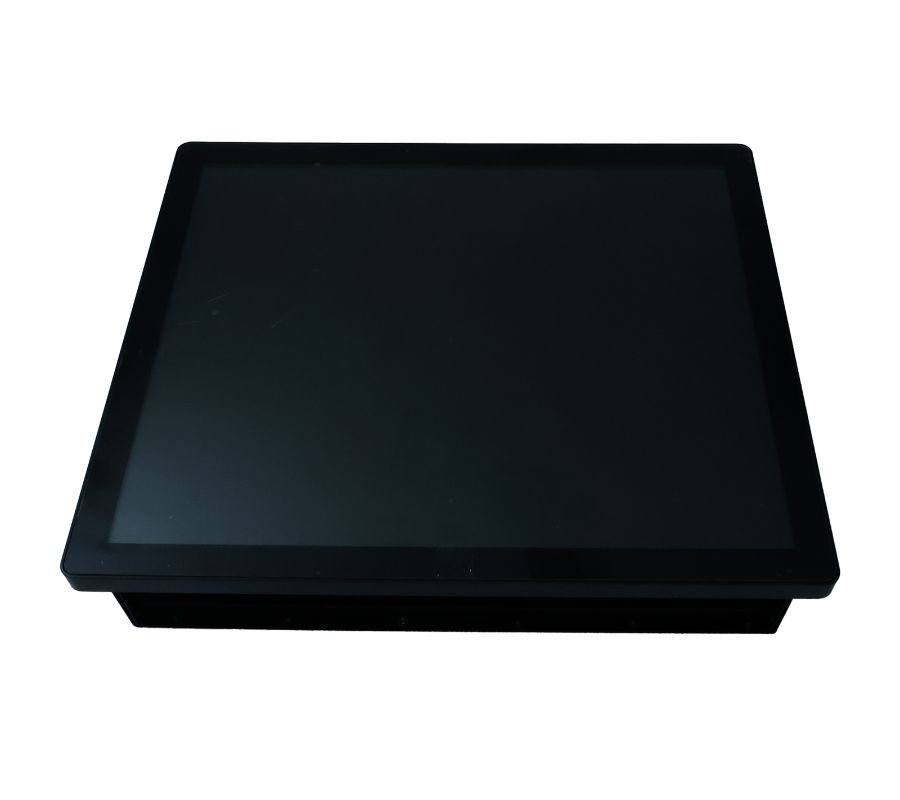

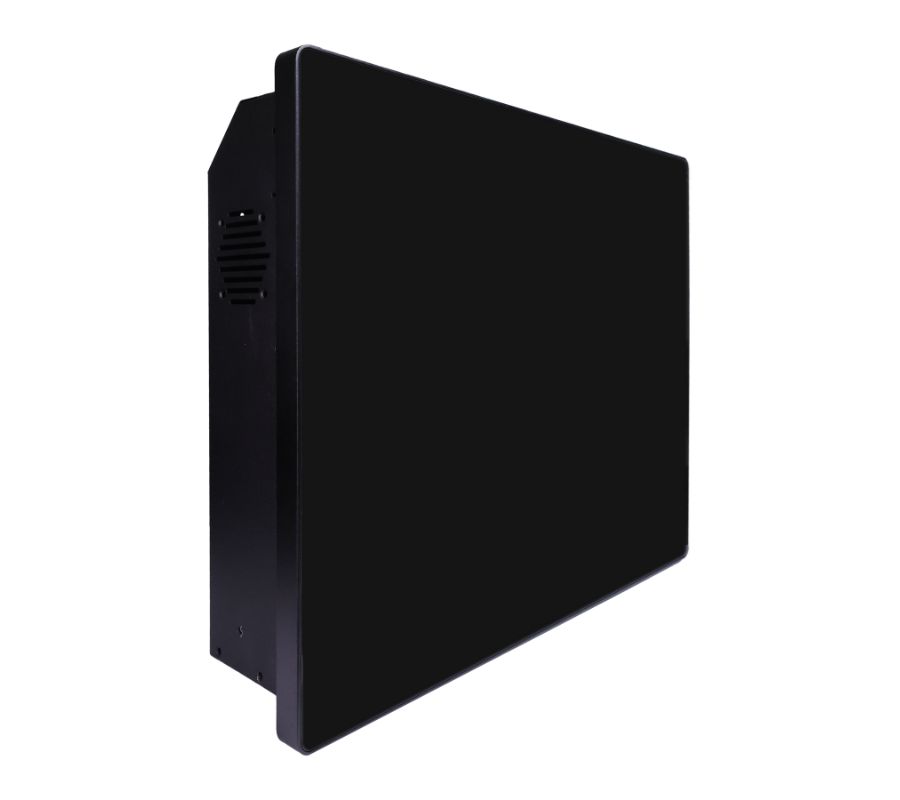

21.5" Industrial Panel PC
MPN: AT–09-2151-i5
Features and Benefits
- Intel® Core™ i3/i5/i7 processor
- 21.5″ Full HD LED display with projected capacitive touch control
- OS Support Windows 10 / 11

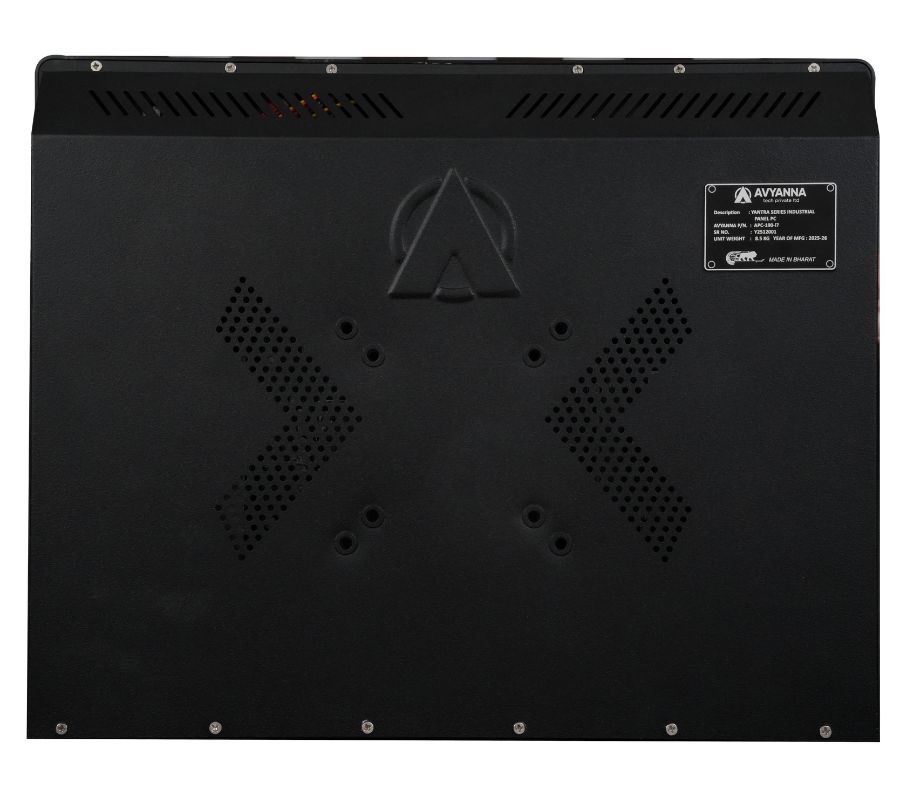

- Supports VESA Mount
- IP65-rated front panel
Certifications
- Overview
- Specifications

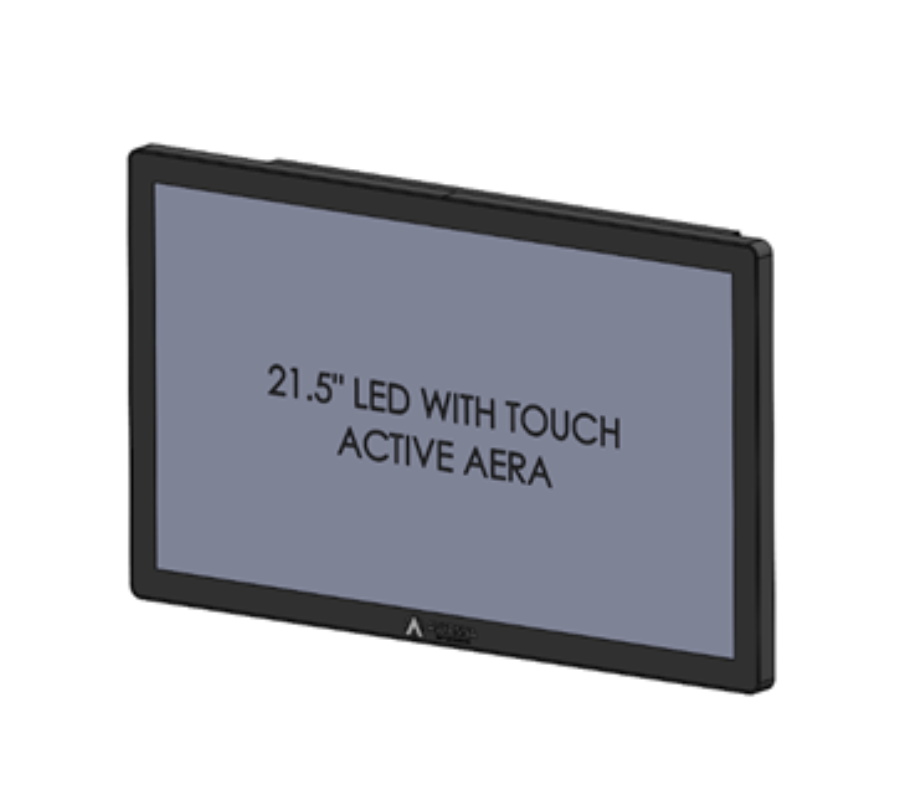

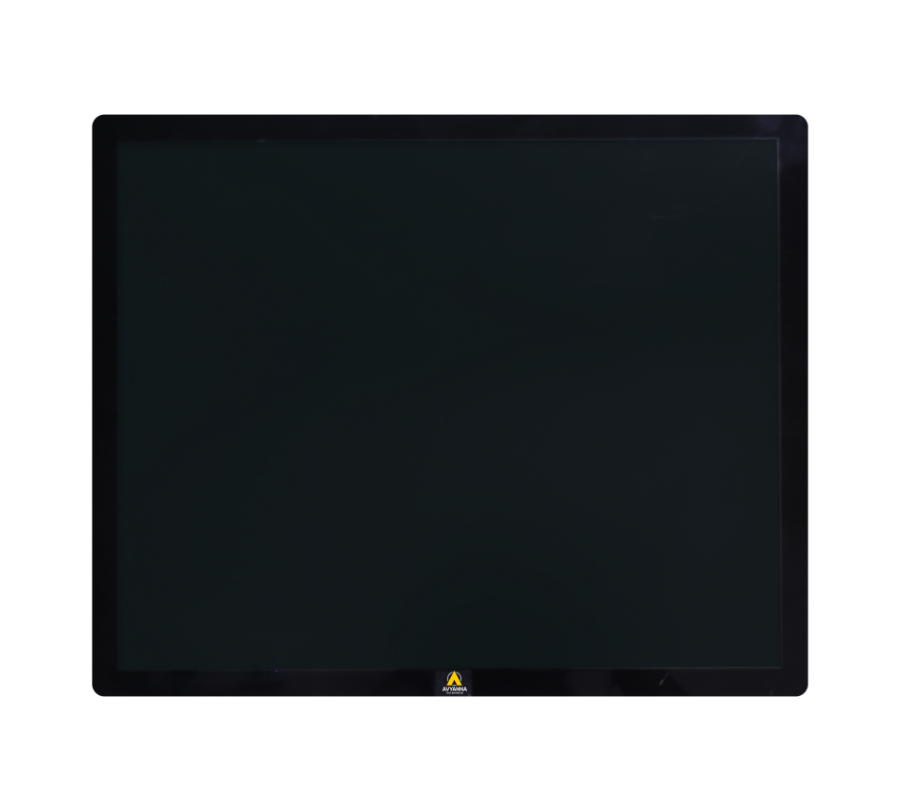

The unit features a 21.5" Full HD LED display with a
1920 × 1080 resolution and 1000:1 contrast ratio. It is
equipped with an Intel® Core™ i3/i5/i7 processor
and 16GB DDR4 SODIMM memory for stable
performance.
The display supports capacitive multi-touch input and
provides a brightness of 300 cd/m², ensuring usability
under varied industrial lighting conditions. The
system operates within a temperature range of 0°C to
50°C.
Mechanical design dimensions are 310(H) × 518(W)
× 80(D) mm, with an approximate weight of 10 kg

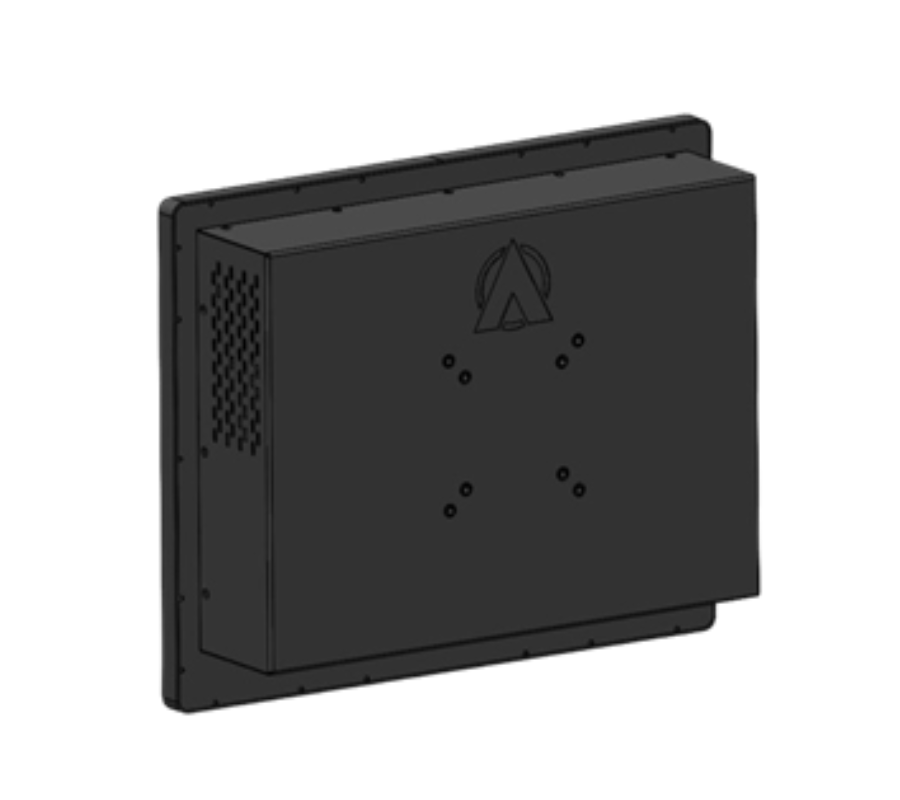

and VESA mounting support. Power requirements
include 230V AC input with a maximum
consumption of 200W.
System
| Processor | Intel® Core™i3/ i5/i7 processor |
|---|---|
| Memory | 16GM DDR4 SODIMM |
| OS Support | Windows 10 / 11 |
Graphics
| Graphics Engine | Intel® UHD Graphics |
|---|
Display
| Display Type | LED |
|---|---|
| Display Size | 21.5 inches |
| Contrast Ratio | 1000:1 (Typ) |
| Max. Resolution | 1920 x 1080 |
| Max. Color | 16.7M colors |
| Display Mode | Normally Black |
Touchscreen
| Touchscreen Type | Capacitive Touch |
|---|
I/O Interface

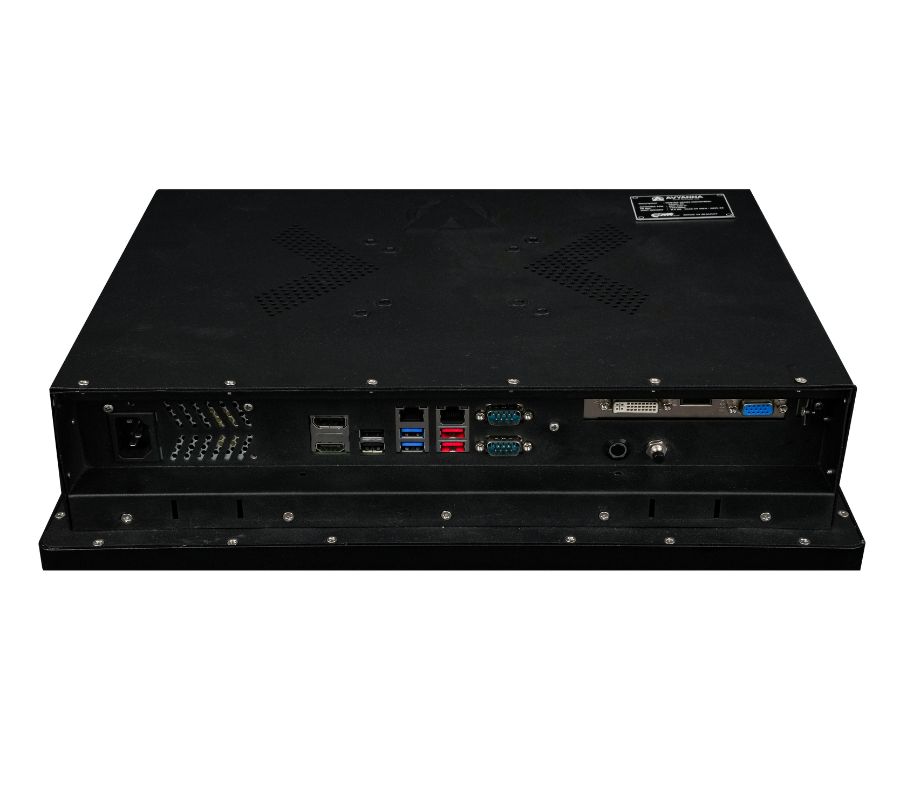

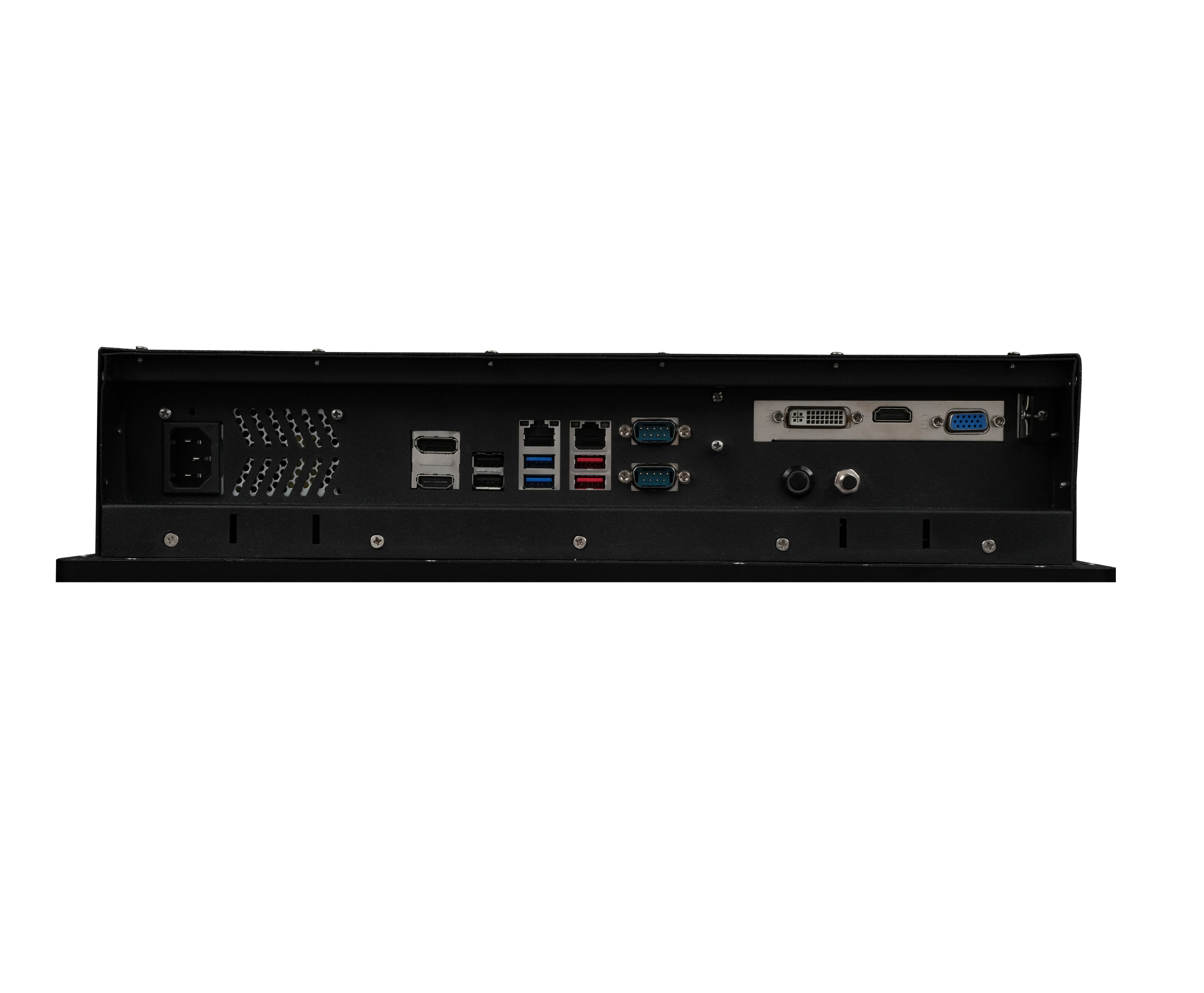

| External I/O | - 2x Serial (RS232) - 2x USB 3.0 - 2x USB 2.0 - 2x Gbit LAN - 1XHDMI |
|---|
Power
| Power Input | 230VAC |
|---|---|
| Max. Current | 1.5 A (Typ.) |
Mechanical
| Dimensions | 310(H) X 518(W) X 80(D) Approx. |
|---|---|
| Weight | 10 Kgs Approx. |
| Mounting | VESA Mount |
Environment
| Operating Temperature | 0° C to 50° C |
|---|---|
| Storage Temperature | -10° C to 60° C |
| Humidity | 5% to 95% Humidity, non-condensing @40° C |
Standards and Certifications
| Certification | CE, FCC- Complied |
|---|
