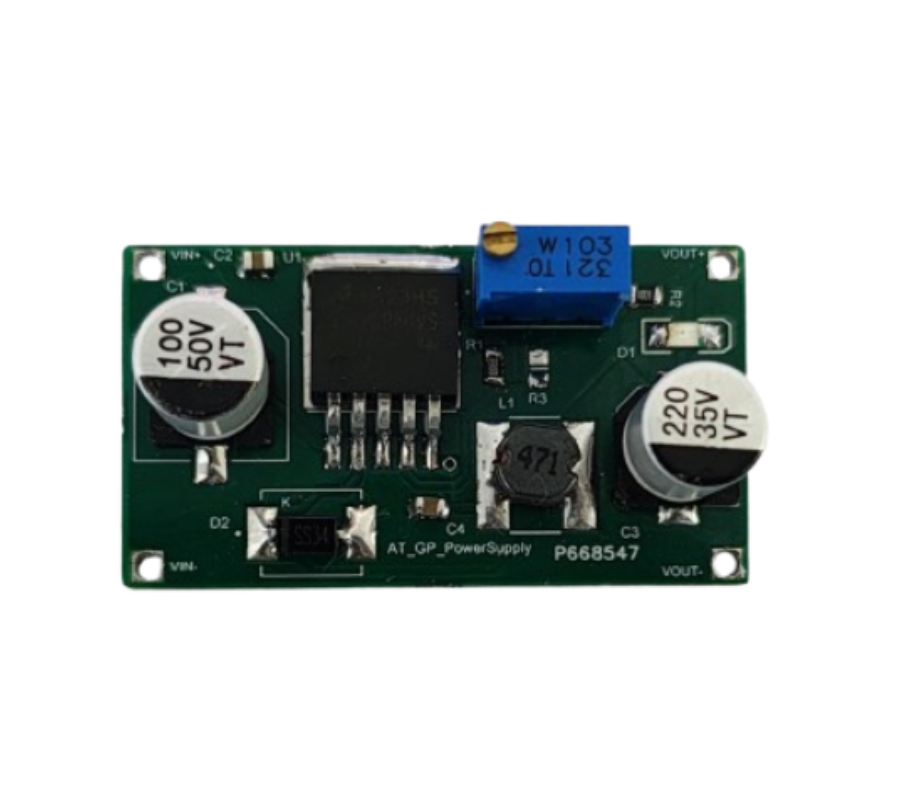

DC-DC Converter
MPN: AT-5SA
Features and Benefits
- Input Voltage DC is 9V-36V
- Output Voltage is 1.5V – 35V (Adjustable)
- Current Rated 2A and Maximum 2.5A
- Indicator – Power ON
- DC-DC Adjustable Buck Convertor
Certifications
- Overview
- Specifications
DC-DC Buck Converter Step down Module LM2596 Power Supply is a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. Key advantages of buck converters include their high efficiency, compact size, and ability to provide a stable output voltage.
Power
| Country of Origin | India |
|---|---|
| Input Voltage | DC 9V–36V (Adjustable range 1.5V–35V) |
| Output Current | Rated 2A, Maximum 2.5A |
| Efficiency | 90% |
| Power Indicator | LED (Power ON indication) |
Environmental Conditions
| Operating Temperature | -35°C to +120°C |
|---|---|
| Operating Humidity | 5%–95% RH (non-condensing) |
| Storage Temperature | -50°C to +140°C |
Resources Content
Model Content
Specifications
General Information
Electrical Specifications
Structure
Environmental Specification
| Country of Origin | India |
| RFID Frequency | 125 KHz |
| Installation | Plug-and-Play |
| Weight | 150g |
| Reading Distance | 1mm to 40mm |
| Communication Interface | USB |
| USB Class | HID |
| Port 2 | RS-485 : D+, D-, GND |
| Output Format | ASCII (Decimal Tag Number) |
| Card / Tag Supported | EM-4100 Tags, Passive Tags |
| Compatible with | Windows, Linux, Android, MAC |
| Antenna | Built-in |
| Relative Humidity | 5% – 85% |
| Storage Temperature | -5°C to 80°C |
| Operating Temperature | 0°C to 65°C |
| Operating Voltage | 5V @50mA (not required external supply) |
