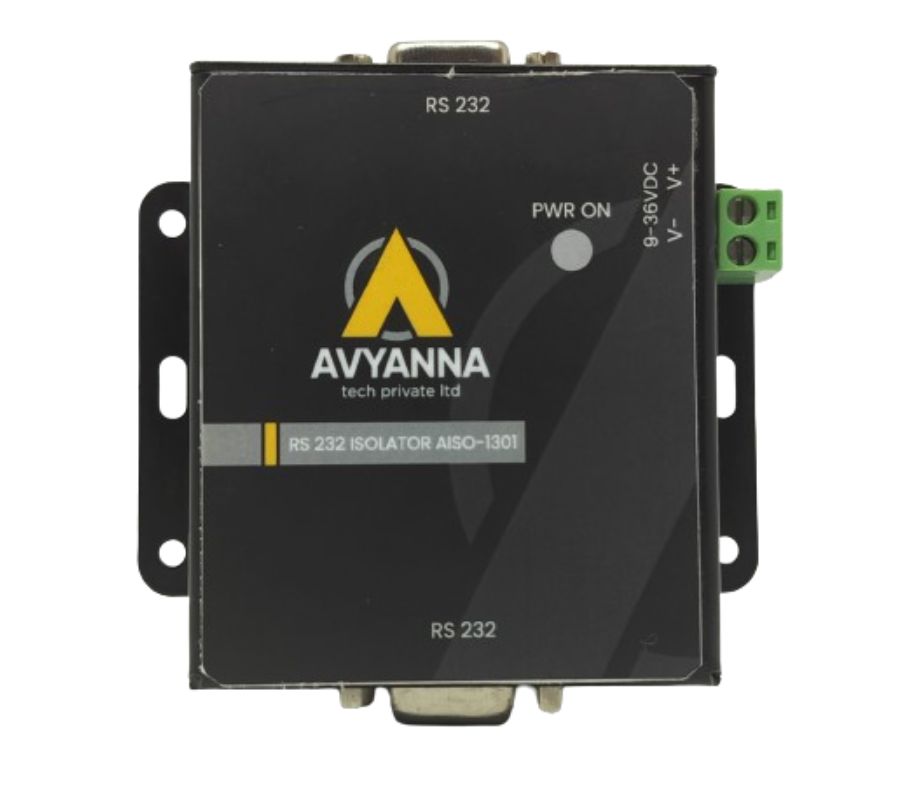

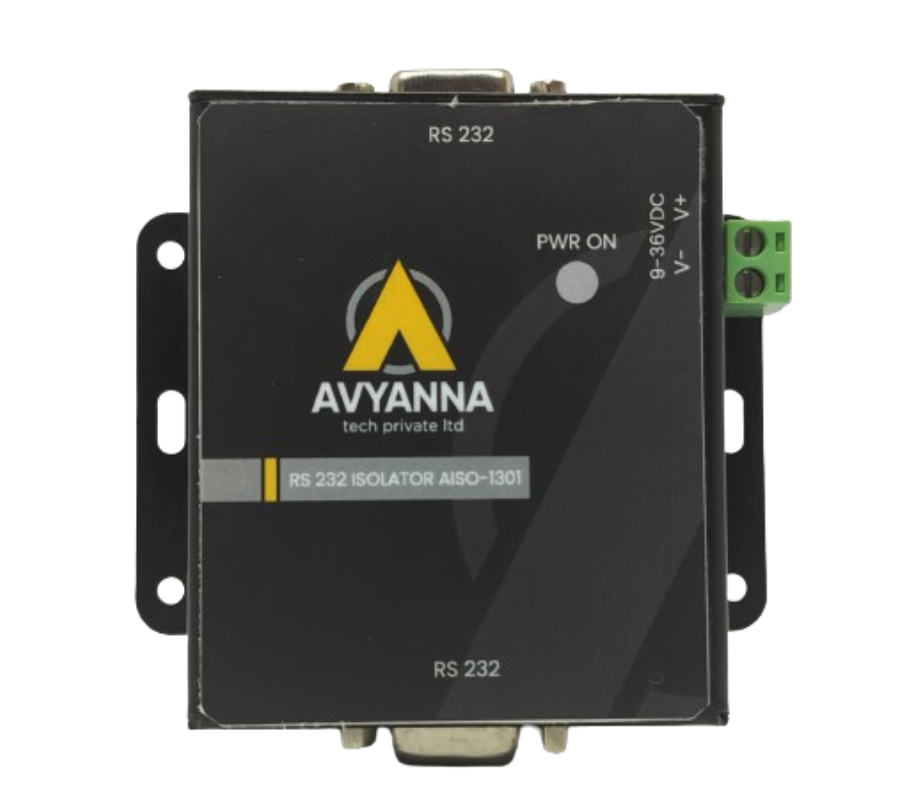

RS-232 Serial Port Isolators
MPN: AT-5IB
Features and Benefits
- Input external supply 9V-36V
- Indicators power on
- Serial RS 232
- Signal isolation provides optical isolation to signals.
- Power isolation > 2500 V isolation between the RS 232 ports.
Certifications
- Overview
- Specifications
Introducing our RS232 to RS485 Converter with isolation and switch-selectable baud rate, designed for seamless and secure industrial communication. Proudly Made in India, it ensures robust performance in automation, energy metering, and embedded system.
General Specifications
| Input | External supply 9V–36V |
|---|---|
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | 40°C to 85°C |
| Indicators | Power ON |
| Dimensions (L × W × H) | L = 7.9 cm, W = 3.2 cm, H = 6.6 cm |
| Weight | 188 g |
| Warranty | 12 months |
Serial Specifications
| Serial Interface | RS-232 |
|---|---|
| Signal Isolation | Provides optical isolation to signals |
| Power Isolation | > 2500 V isolation between RS-232 ports |
| Baud Rate | 300 to 115200 baud |
| Connectors | 9 Pin D-Type Female to DTE side, 9 Pin D-Type Female to DCE side |
Resources Content
Model Content
Specifications
General Information
Electrical Specifications
Structure
Environmental Specification
| Country of Origin | India |
| RFID Frequency | 125 KHz |
| Installation | Plug-and-Play |
| Weight | 150g |
| Reading Distance | 1mm to 40mm |
| Communication Interface | USB |
| USB Class | HID |
| Port 2 | RS-485 : D+, D-, GND |
| Output Format | ASCII (Decimal Tag Number) |
| Card / Tag Supported | EM-4100 Tags, Passive Tags |
| Compatible with | Windows, Linux, Android, MAC |
| Antenna | Built-in |
| Relative Humidity | 5% – 85% |
| Storage Temperature | -5°C to 80°C |
| Operating Temperature | 0°C to 65°C |
| Operating Voltage | 5V @50mA (not required external supply) |
