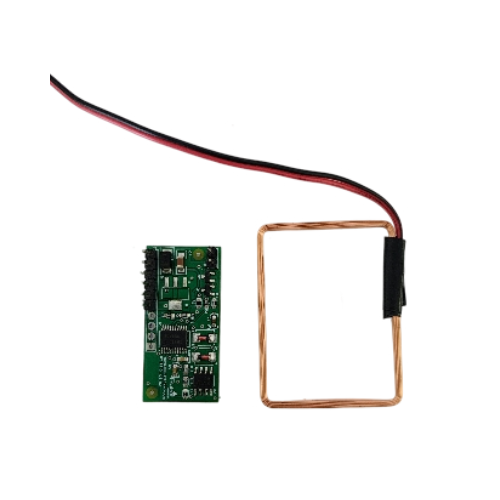

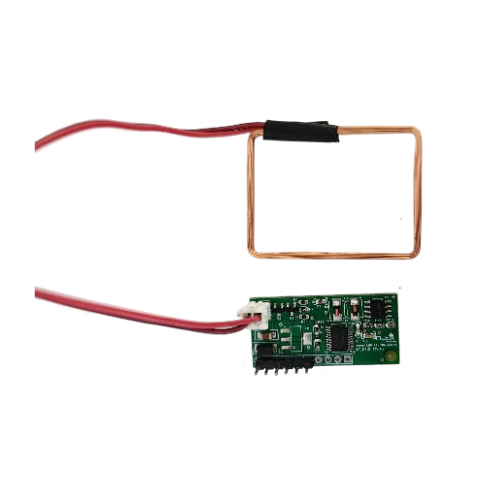

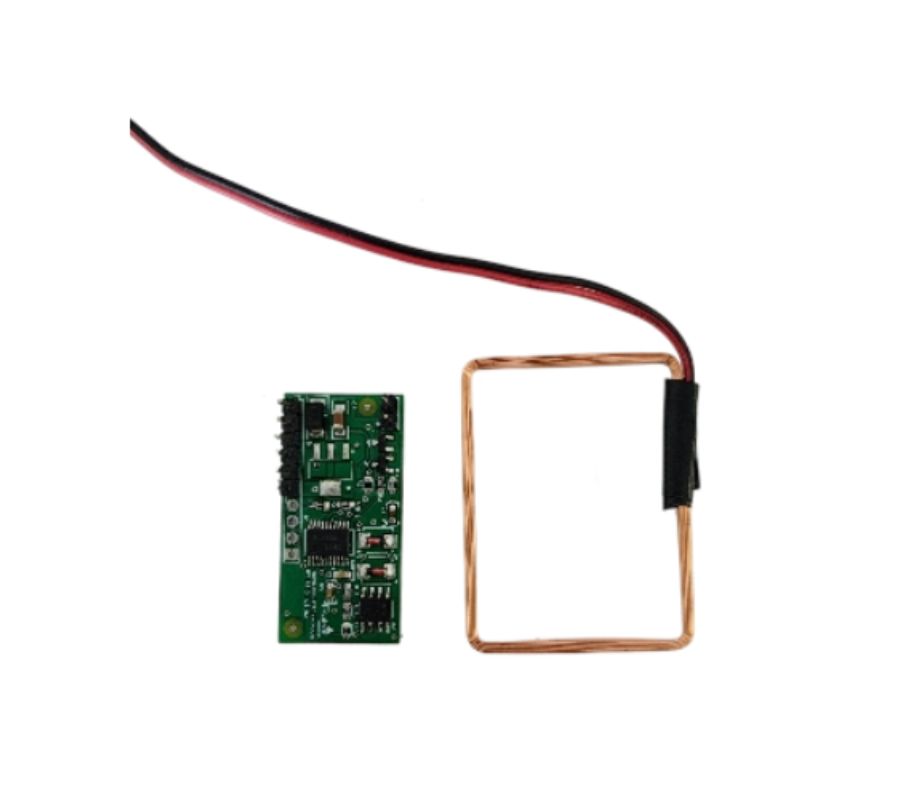

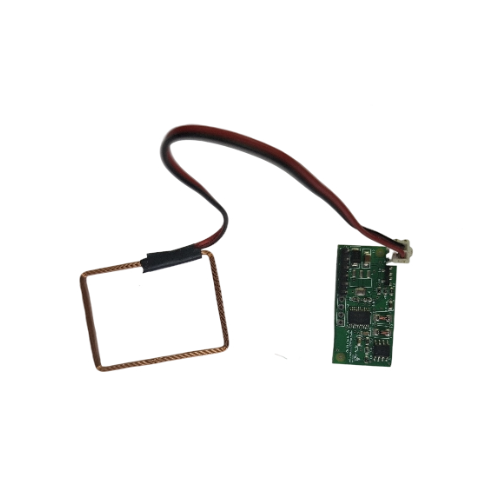

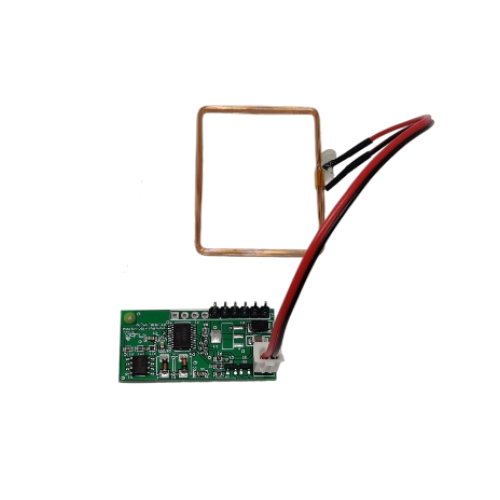

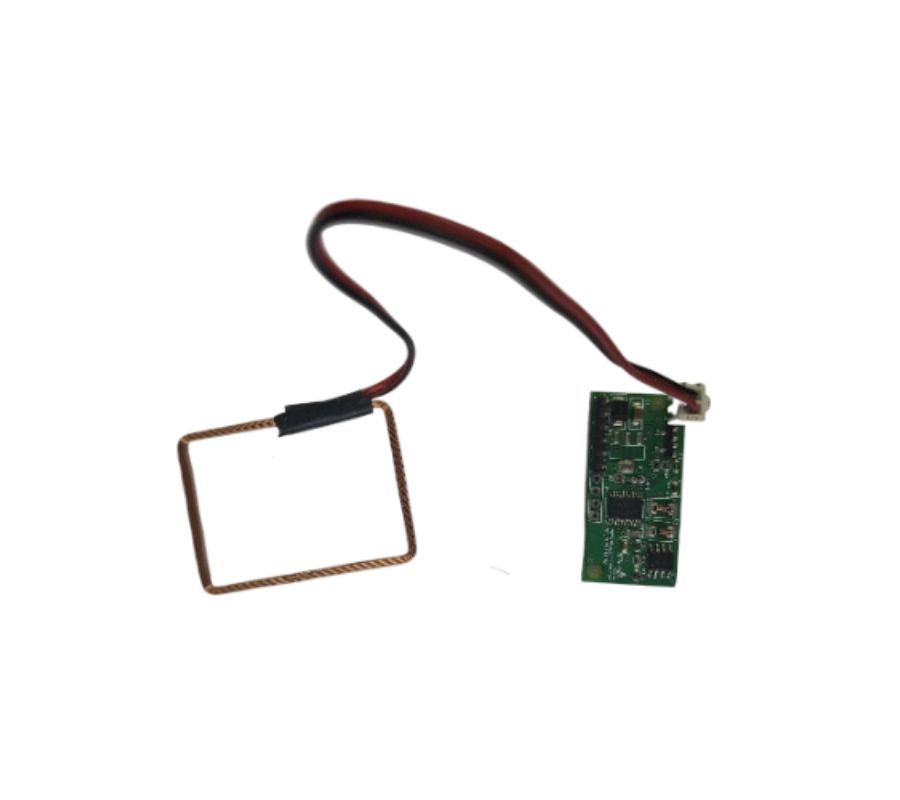

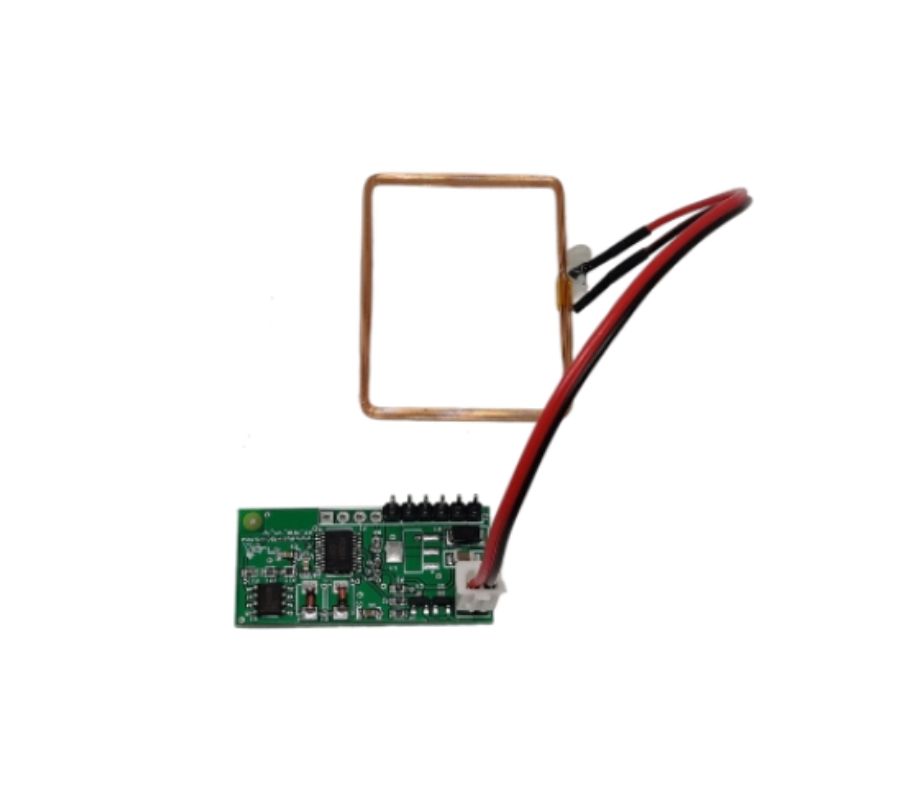

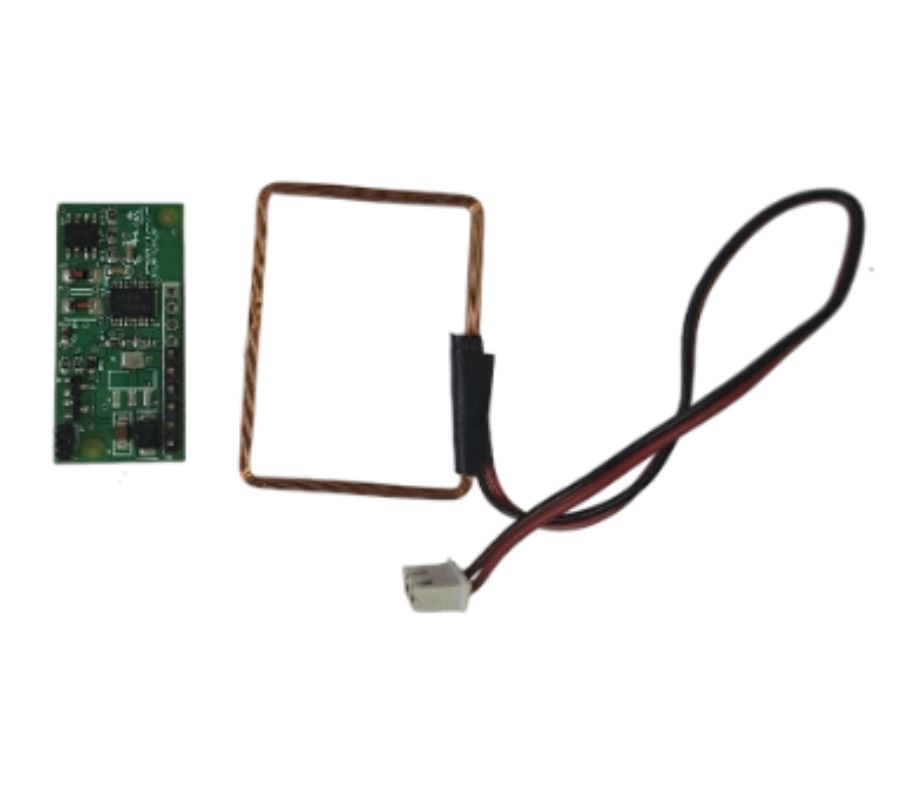

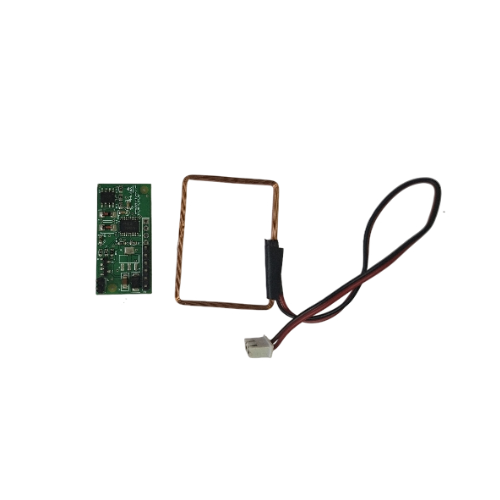

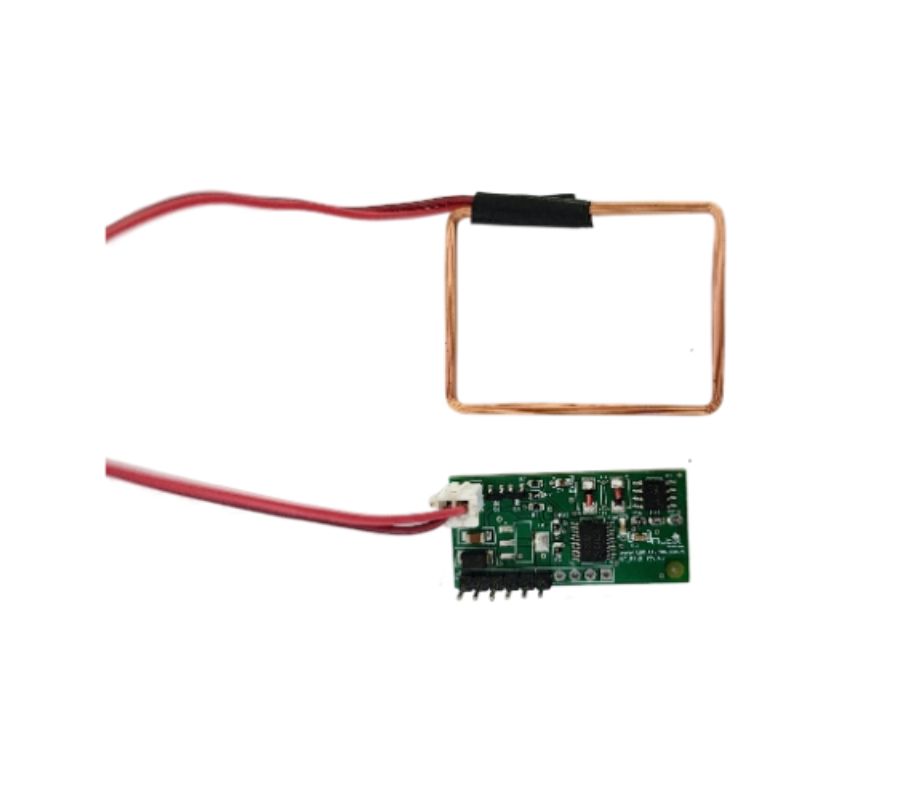

MPN: - A-LRO1
125 KHz Access Control
Features and Benefits
- Support EM-marine Tag (125 KHz)
- Support read only feature.
- Fast data transfer contactless communication
- Secure-Encrypted Manchester Decoding
- HEXA Decimal output
- Typical operating distance in reader up to 35mm depending on the antenna size and tuning.
- In built 125KHz Antenna
Certifications
- Overview
- Specifications
- Resources
- Model
Support EM-marine Tag (125 KHz)
data transfer rate 9600 bit/s
Secure-Encrypted Manchester Decoding
HEXA Decimal output
Typical operating distance in reader up to 35mm depending on the antenna size and tuning.
In built 125KHz Antenna
General
| Operating Frequency | 125 KHz |
|---|---|
| Baud Rate Support | 9600Reading Distance- 1mm to 40mm |
| Reader Distance | Up to 30mm |
| Interface | TTL/UART |
| Card/ Tag Supported | EM-marine 125KHZ |
| Tag Detection | Automatic |
| Country of origin | India |
Power Parameters
| Operating Current | 40mA @5V |
|---|---|
| Operating Voltage | 5V |
Physical Characteristics
| Dimension - Antenna | 46 mm x 43 mm |
|---|---|

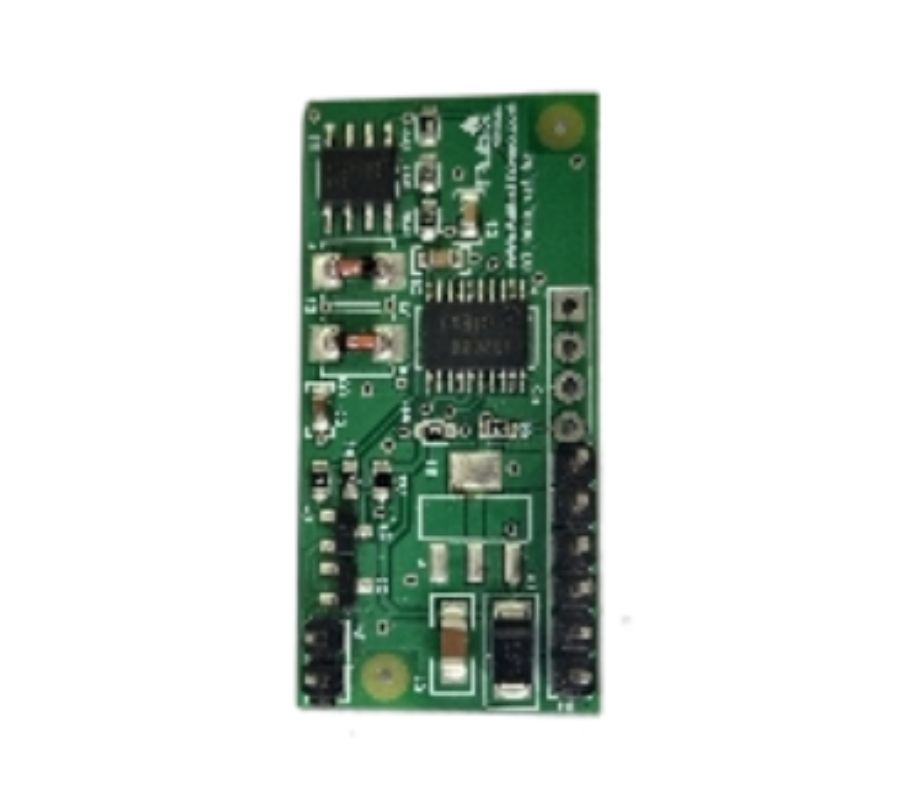

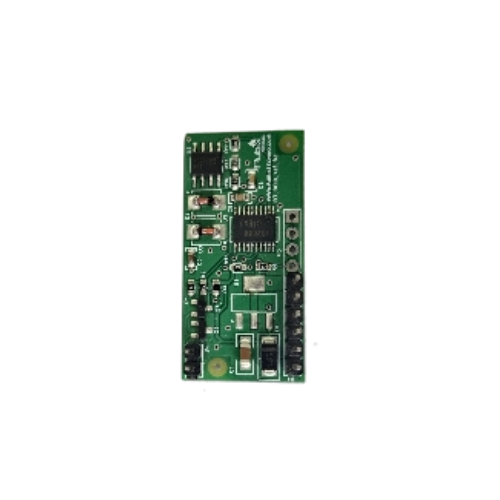

| PCB | 49mm x 28 mm |
Environmental Limits
| Operating Temperature | 0°C to 65°C |
|---|---|
| Storage Temperature | 0°C to 85°C |
| Relative Humidity | : 5% - 95% (non- condensing) |
Standards and Certifications
| RoHS |
|---|
Resources Content
Model Content
A-125
A 125 RFID 125KHz Reader Module reads & writes codes from 125KHz cards. Ideal for Security, Access Control, Personal IO Anti-For gory, Introduction Toys & Production Control
Specifications
General Information
Electrical Specifications
Structure
Environmental Specification
| Country of Origin | India |
| RFID Frequency | 125 KHz |
| Installation | Plug-and-Play |
| Weight | 150g |
| Reading Distance | 1mm to 40mm |
| Communication Interface | USB |
| USB Class | HID |
| Port 2 | RS-485 : D+, D-, GND |
| Output Format | ASCII (Decimal Tag Number) |
| Card / Tag Supported | EM-4100 Tags, Passive Tags |
| Compatible with | Windows, Linux, Android, MAC |
| Antenna | Built-in |
| Relative Humidity | 5% – 85% |
| Storage Temperature | -5°C to 80°C |
| Operating Temperature | 0°C to 65°C |
| Operating Voltage | 5V @50mA (not required external supply) |
