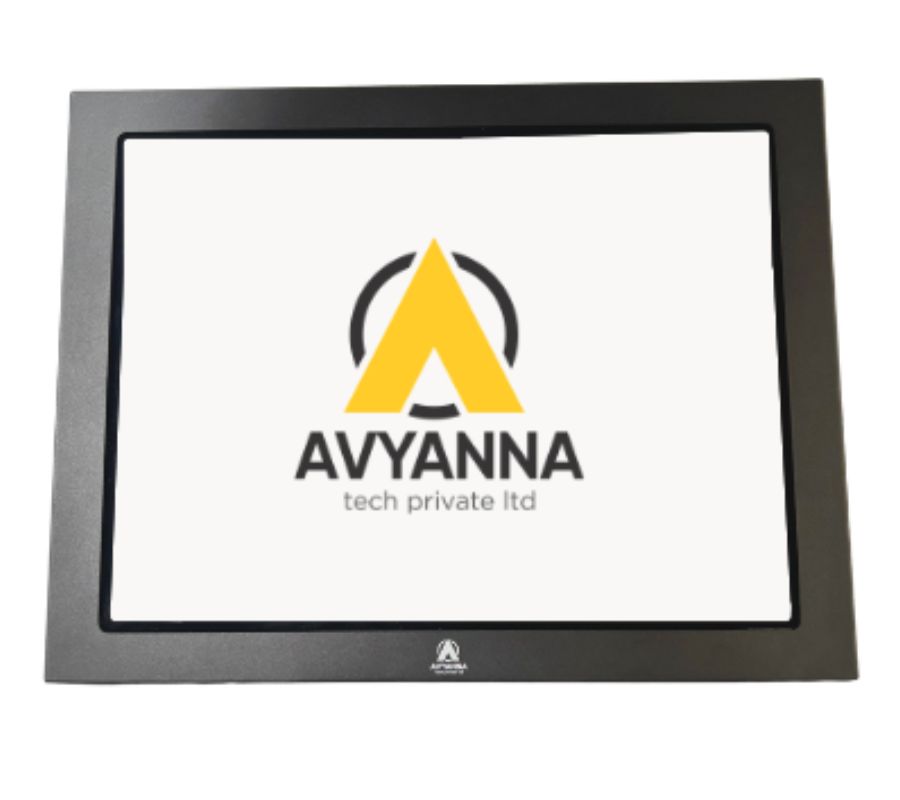

11.6" Industrial Full HD LED Display
MPN: AT-08-116CT
Features and Benefits
- IP65-rated front panel
- 11.6″ Full HD LED display supports capacitive multi-touch input
- Max. Resolution 1920 x 1080
- 0° C ~ +50° C range operating temperature
- Dual signal interface with VGA & HDMI
- Brightness solution of 250 cd/m²
Certifications
- Overview
- Specifications
AT-08-116CT – 11.6" Industrial Full HD LED Display
The AT-08-116CT is an 11.6-inch Industrial Full HD LED Display designed for high-performance visualization in rugged industrial environments. Featuring a 1920 x 1080 resolution, capacitive touchscreen, and wide viewing angles, it ensures crystal-clear image quality and responsive operation. Housed in a stainless steel enclosure with IP65-rated front protection, this display offers superior durability against dust, moisture, and vibration. With multiple connectivity options including HDMI, VGA, and USB, it integrates seamlessly with industrial PCs, HMIs, and embedded control systems.
Compact, efficient, and reliable, the AT-08-116CT is ideal for applications demanding robust performance and consistent display clarity in challenging conditions.
Display
| Display Type | TFT LCD |
|---|---|
| Display Size | 11.6 inches |
| Contrast Ratio | 700:1 (Typ) |
| Max. Resolution | 1920 × 1080 |
| Max. Color | 16.2M colors |
| Active Area | 256.32(H) × 144.18(V) |
| Pixel Pitch | 0.1335(H) × 0.1335(V) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 80/80/80/80 (Typ.) (CR ≥ 10) |
| Luminance | 250 cd/m² |
Touchscreen
| Touchscreen Type | Capacitive Touch |
|---|
I/O Interface
| External I/O | 1× USB 2.0, 1× HDMI, 1× VGA |
|---|
Power
| Power Input | 24V DC |
|---|---|
| Max. Current | 1.5 A (Typ.) |
| Max. Power | 25 W (Typ.) |
Mechanical
| Dimensions | 165(H) × 270(W) × 50(D) mm (Approx.) |
|---|---|
| Weight | 3 Kgs (Approx.) |
| Mounting | VESA Mount |
| External Finish | Stainless Steel Finish |
Environment
| Operating Temperature | 0°C to 50°C |
|---|---|
| Storage Temperature | -10°C to 60°C |
| Humidity | 5% to 95% RH (non-condensing @40°C) |
| Ingress Protection | IP65 – Front Panel, Rest IP40 Rated |
Certifications
| Certification | CE, FCC – Complied |
|---|
