12 Digital Input 8 Digital Output
RM-12DI8DO

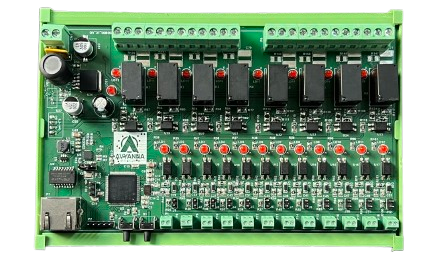

The 12 Digital Input, 8 Digital Output Module with Relay Outputs offers optically isolated I/O with inductive noise
suppression. Ethernet TCP connectivity for easy network integration. It features web-based configuration for
remote monitoring and control, making it ideal and secure for industrial automation.
Specifications
Electrical
Specifications
Specifications
Physical
Specifications
Specifications
Environmental
Specifications
Specifications
Certifications &
Indicators
Indicators
| Input Voltage | DC 9V-36V |
| Input Current | Mean: 80mA@9V, 70mA@12V |
| Dimensions (L x W) | 181 × 123 mm |
| Mounting type | Din Rail Mounting |
| Operating Temperature | 0°C ~ 60°C |
| Operating Humidity | 20 ~ 95% RH (non-condensing) |
| Storage Temperature | 0°C to 75°C |
| Certifications | ROHS |
| Indicator | Power ON, Ethernet, Digital input/output status LED’s |
