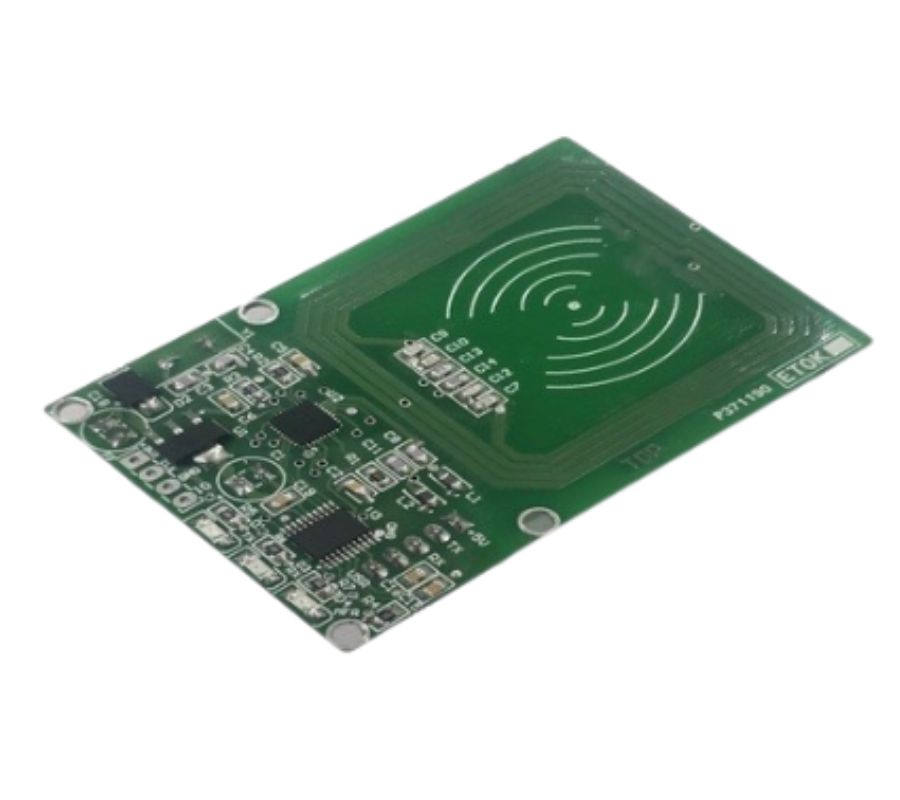

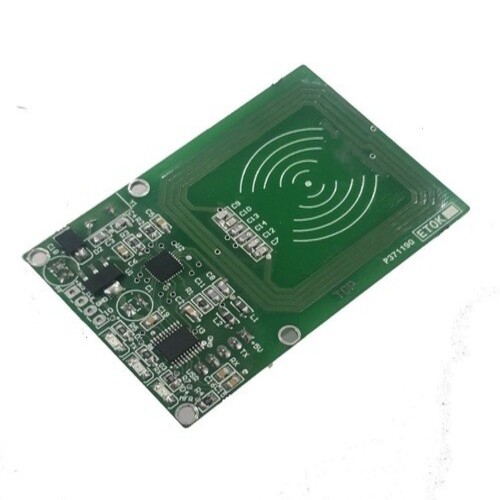

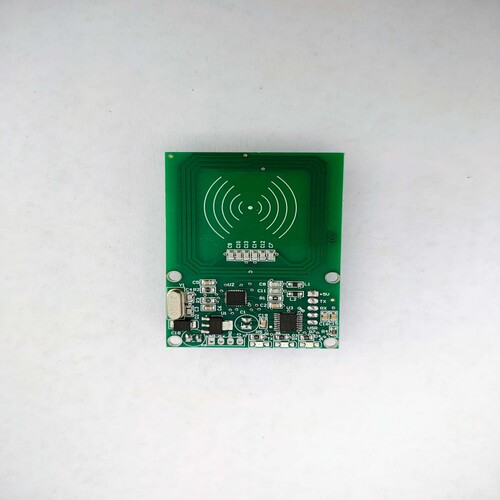

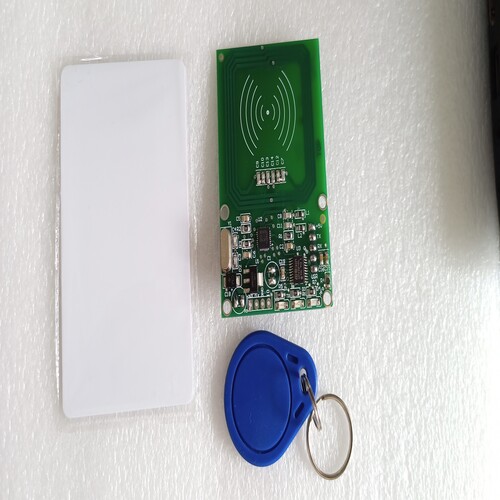

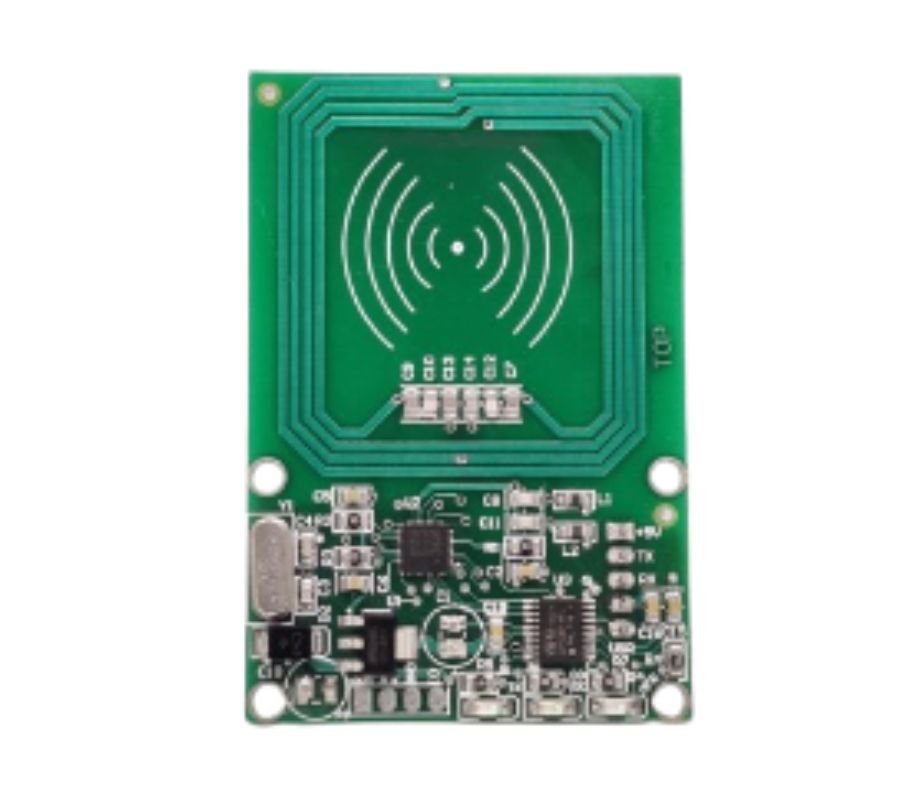

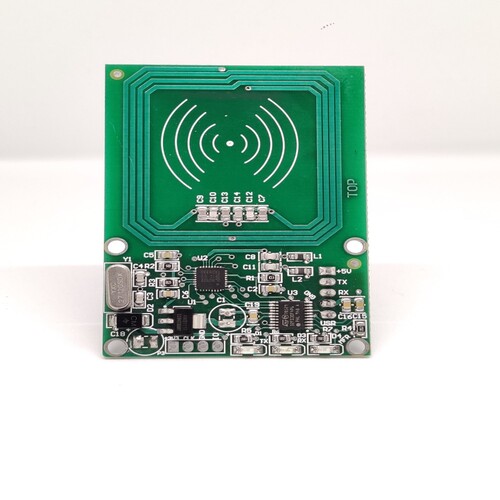

RFID Contactless 13.56 MHz Reader Writer
MPN: AT-313
Features and Benefits
- Support ISO14443A MIFARE Classic 1k, MIFARE Ultralight MIFARE1 S50, MIFARE Pro, MIFARE DESFire.
- Fast data transfer contactless communication.
- Secure Secure-Encrypted contactless communication up to 106 KHz
- Typical operating distance in reader/writer up to 40mm depending on the antenna size and tuning.
- In built 13.56MHz Antenna
Certifications
- Overview
- Specifications

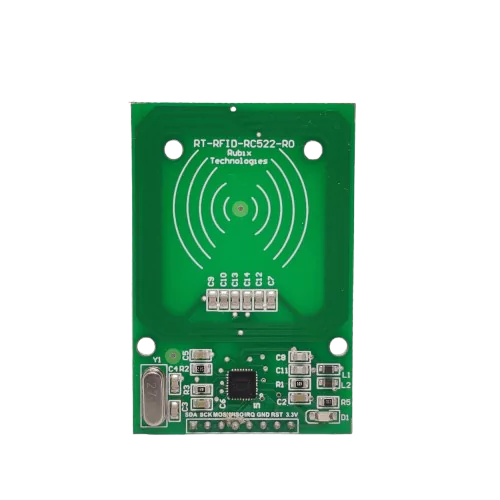

The MFRC522 A-HWR1/2/4 is a highly integrated reader/writer for contactless communication at 13.56 MHZ. The MFRC522 A-HWR1/2/4 reader supports ISO 14443A / MIFARE. The MFRC522 A-HWR1/2/4 internal transmitter part is able to drive a reader/writer antenna designed to communicate with ISO 14443A/MIFARE cards and transponders without additional active circuitry. MFR255 A HWR1/2/4 RFID Reader features an outstanding modulation and demodulation algorithm to serve effortless RF communication.
General
| Operating Frequency | 13.56 MHz |
|---|---|
| Reading Distance | Up to 35mm |
| Read/Write Support | Yes |
| Indication | LED |
| Baud Rate Supported | 9600, 19200, 38400, 56700, 115200 Default 9600 |
| Tag Supported | MIFARE 1K/4K, MIFARE Ultralight, MIFARE Pro, MIFARE DESFire |
| Tag Detection | Based on Commands |
| Country of origin | India |
Power Parameters
| Operating Current | 13-26mA @5V |
|---|---|
| Operating Voltage | DC 5V |
| Idle Current | 10-13mA@5V |
| Sleep Current | < 80uA |
| Peak Current | < 30m |
Physical Characteristics
| PCB Dimensions (L x W) | 68.50 x 46 mm |
|---|
Environmental Limits
| Operating Temperature | 0°C to 55°C |
|---|---|
| Relative Humidity | 5% - 95% |
Standards and Certifications
| RoHS |
|---|
Resources Content
Model Content
A-13.56
TheMFR255-232 is a highly integrated transmission module for contact-less communication at 13.56MHz. MFR255-232 RFID Reader feature an outstanding modulation and demodulation algorithm to serve effortless RF communication at 13.56 MHz
Specifications
General Information
Electrical Specifications
Structure
Environmental Specification
| Country of Origin | India |
| RFID Frequency | 125 KHz |
| Installation | Plug-and-Play |
| Weight | 150g |
| Reading Distance | 1mm to 40mm |
| Communication Interface | USB |
| USB Class | HID |
| Port 2 | RS-485 : D+, D-, GND |
| Output Format | ASCII (Decimal Tag Number) |
| Card / Tag Supported | EM-4100 Tags, Passive Tags |
| Compatible with | Windows, Linux, Android, MAC |
| Antenna | Built-in |
| Relative Humidity | 5% – 85% |
| Storage Temperature | -5°C to 80°C |
| Operating Temperature | 0°C to 65°C |
| Operating Voltage | 5V @50mA (not required external supply) |
