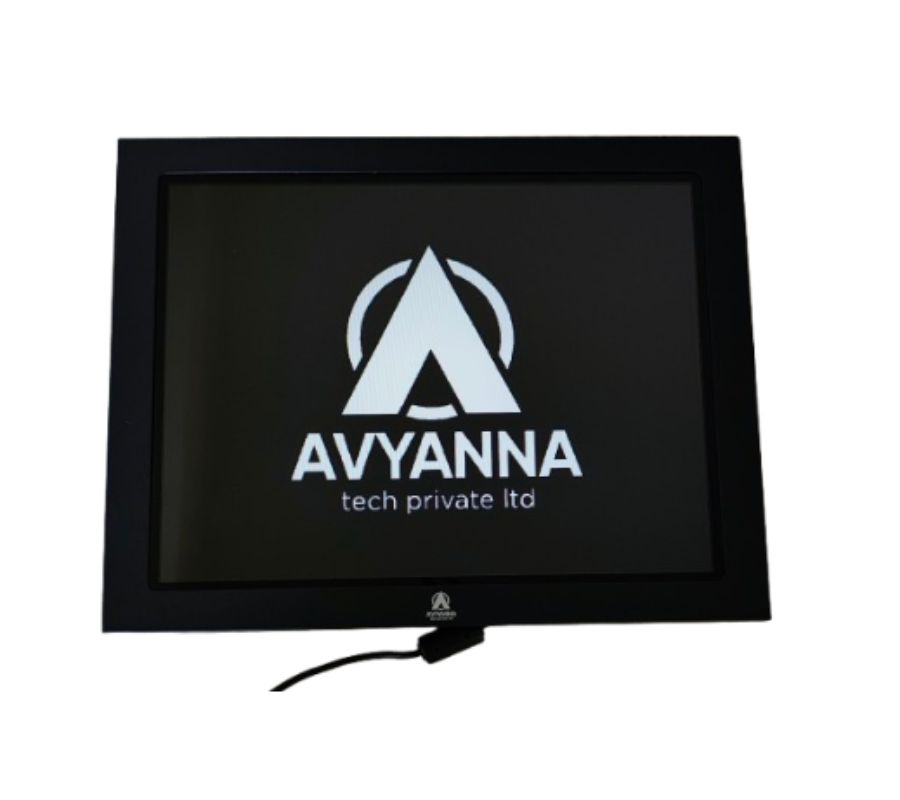

15" Industrial Monitor with Touch
MPN: AT-8-15CT
Features and Benefits
- Interface LVDS
- 15″ TFT LCD display with touch
- Max. Resolution 1024 x 768
- -10° C ~ +60° C range operating temperature
- Video Port with HDMI, DP and VGA
- Brightness solution of 200 cd/m²
Certifications
- Overview
- Specifications
AID-15T is 15” TFT Liquid Crystal touch Display IAV module with LED Backlight units and 20 pins LVDS Interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors. The PSWG is to establish a set of touch displays with standard mechanical dimensions and select electrical Interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.
Display
| Display Type | TFT LCD |
|---|---|
| Display Size | 15 inch |
| Resolution | XGA (1024 × 768 pixels) |
| Max. Color | 16.2M / 262K |
| Viewing Angle (H/V) | 88° × 88° × 88° × 88° |
| Luminance | 200 cd/m² |
| Backlight Life | 70,000 hrs |
| Contrast Ratio | 1300:1 |
| Display Interface | LVDS |
Touchscreen
| Touch Type | Capacitive |
|---|---|
| Touch Surface | TFT |
I/O Interface
| Video Port | HDMI, DP, VGA |
|---|---|
| USB (Rear I/O) | USB 2.0 Type-A |
Power
| Power Input | 12V DC, 36W |
|---|
Mechanical
| Dimensions (W × H × D) | 364 mm × 284 mm × 51 mm |
|---|---|
| Enclosure | Mild Steel |
| Mounting | Wall and VESA Mounting |
| Weight (Net) | 3.3 Kg |
System
| OS Support | Windows 7 and 10 |
|---|
Environmental
| Operating Temperature | -20°C to +70°C |
|---|---|
| Storage Temperature | -30°C to +70°C |
| Relative Humidity | 90% RH (non-condensing) |
| Vibration (Non-Operating) | 1.5G, 10~300Hz sine wave, 10min/cycle, 3 cycles each X, Y, Z |
Resources Content
Model Content
Specifications
General Information
Electrical Specifications
Structure
Environmental Specification
| Country of Origin | India |
| RFID Frequency | 125 KHz |
| Installation | Plug-and-Play |
| Weight | 150g |
| Reading Distance | 1mm to 40mm |
| Communication Interface | USB |
| USB Class | HID |
| Port 2 | RS-485 : D+, D-, GND |
| Output Format | ASCII (Decimal Tag Number) |
| Card / Tag Supported | EM-4100 Tags, Passive Tags |
| Compatible with | Windows, Linux, Android, MAC |
| Antenna | Built-in |
| Relative Humidity | 5% – 85% |
| Storage Temperature | -5°C to 80°C |
| Operating Temperature | 0°C to 65°C |
| Operating Voltage | 5V @50mA (not required external supply) |
