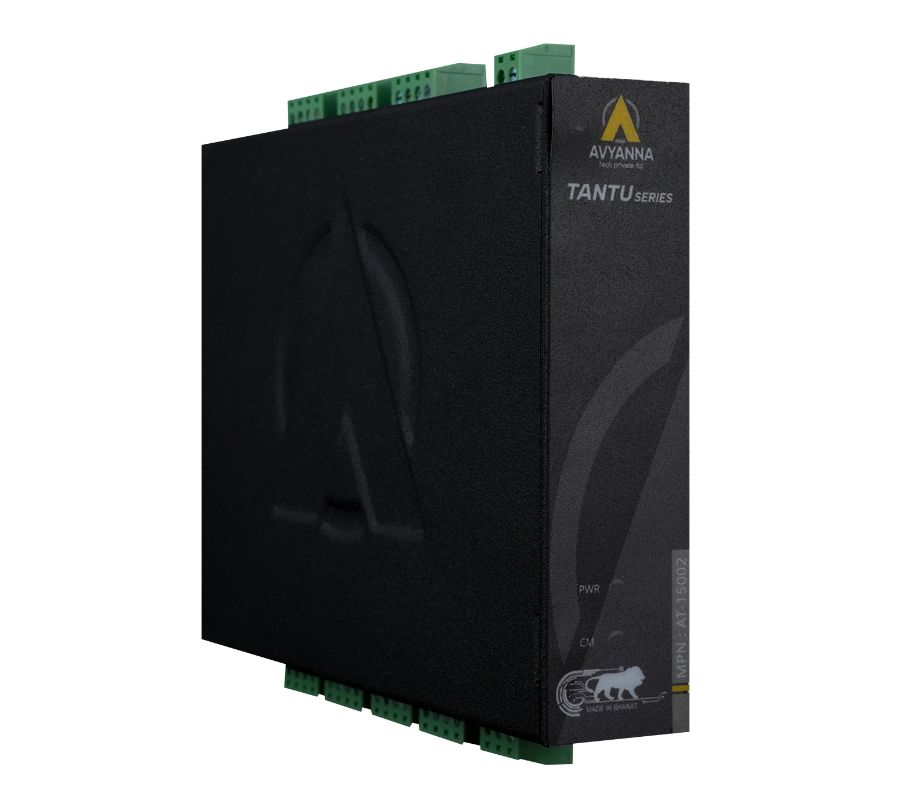

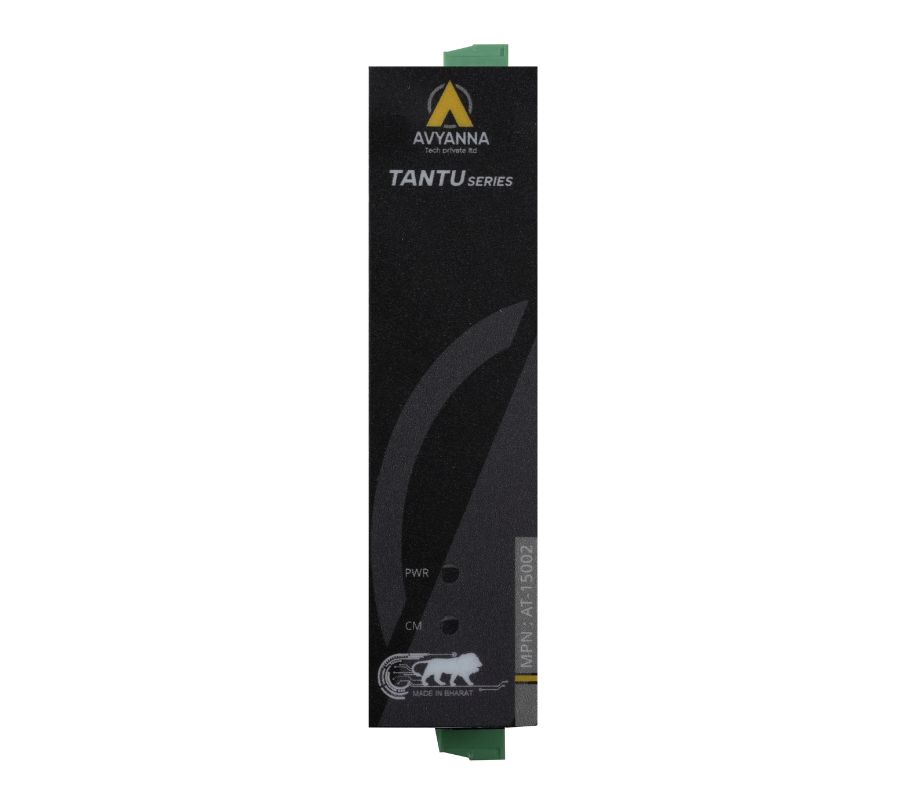

7-ch RTD Module with Modbus RTU
MPN: AT–15002
Features and Benefits
- 7ch RTD
- Protocols: Modbus RTU
- Compact DIN-rail mountable design
- Galvanic Isolation of 2.5 kV
Certifications
- Overview
- Specifications
AT-15002 – 7-Channel RTD Input Module with Modbus RT
The AT-15002 is a high-accuracy 7-channel RTD input module designed for precise temperature measurement and monitoring over the Modbus RTU protocol. It supports Pt100 and Pt1000 sensors with 2-wire, 3-wire, and 4-wire connections, providing flexibility for various industrial temperature sensing applications.
With an accuracy of ±0.5°C, the module ensures stable and reliable readings across wide temperature ranges — Pt100: -200°C to +850°C and Pt1000: -70°C to +550°C. Its rugged design and Modbus RTU communication make it ideal for integration into existing control systems.
Communications
| Interface | RS-485 |
|---|
General

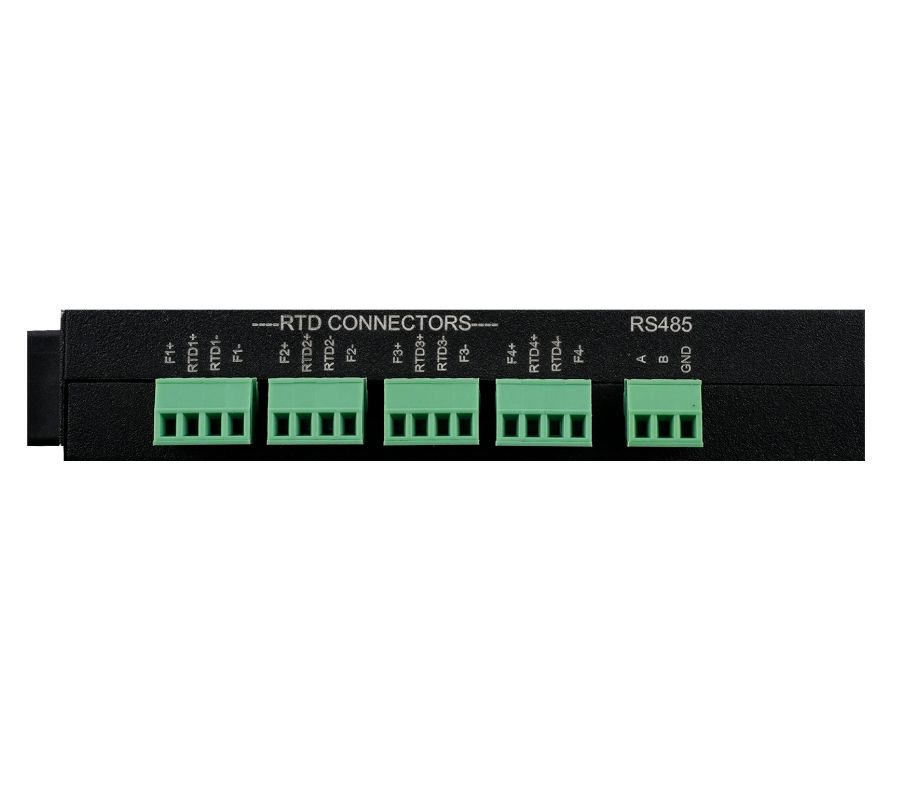

| Connectors | 2 x plug-in terminal block (#14~22 AWG) |
|---|---|
| Protocol | Modbus/RTU |
RTD Input
| Number of Channel | 7 |
|---|---|
| Input Connections | - 2 wires,3 wires,4 wires |
| Input Type | pt(platinum) |
| Pt100 Temperature range | 200 to 850 |
| Pt100 Temperature range | -70 to 550 C |
| Accuracy | 0.5C(0.05% of Full Scale)max |
Environment
| Galvanic Isolation | 2.5 kV |
|---|---|
| Operating Temperature | 0°C - 60°C |
Power Requirements
| Input Voltage | 9 – 36 VDC |
|---|
Standards and Certifications
| RoHS |
|---|
