8-ch Thermocouple Input Module with Modbus RTU
MPN: AT-16003
Features and Benefits
8ch thermocouple
Protocols: Modbus RTU
Compact DIN-rail mountable design
- Galvanic Isolation of 2.5 kV
Certifications
- Overview
- Specifications

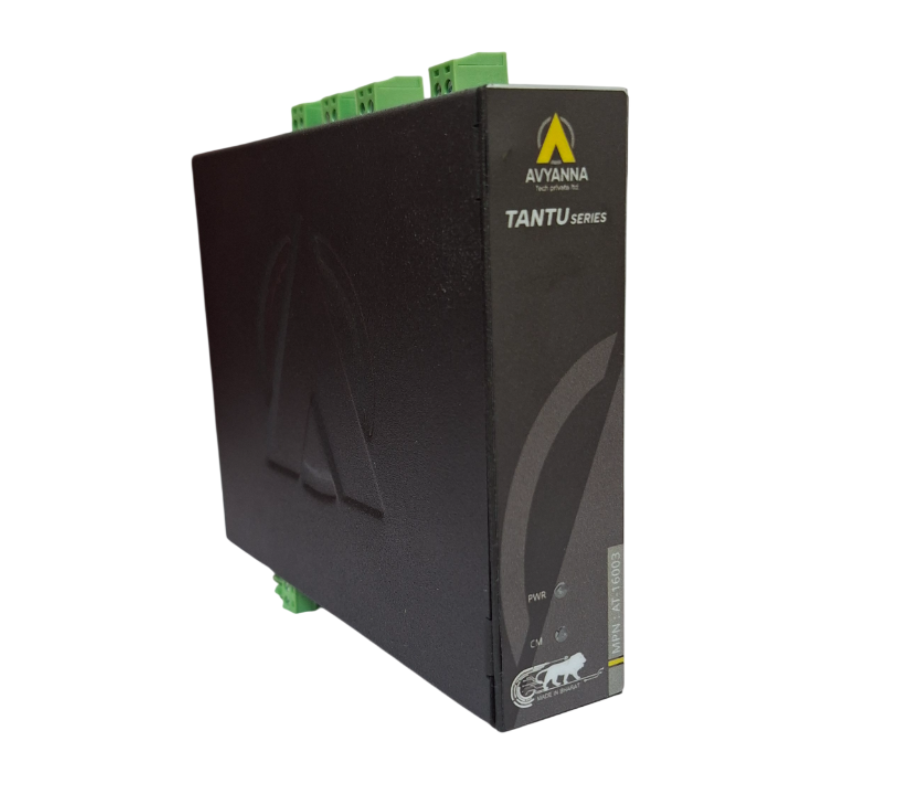

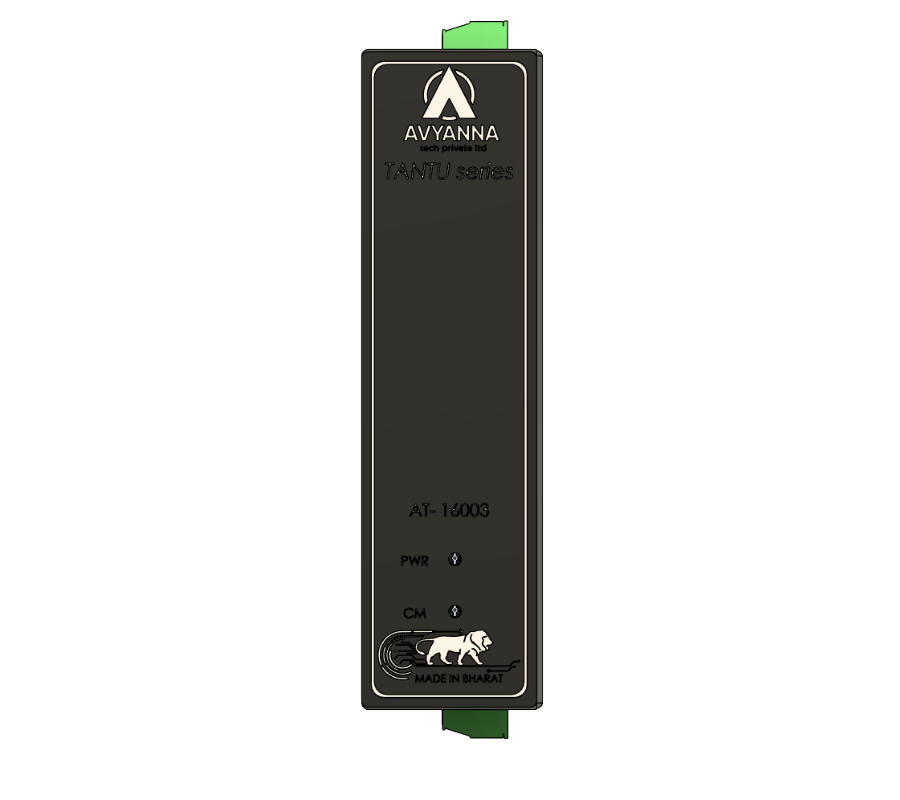

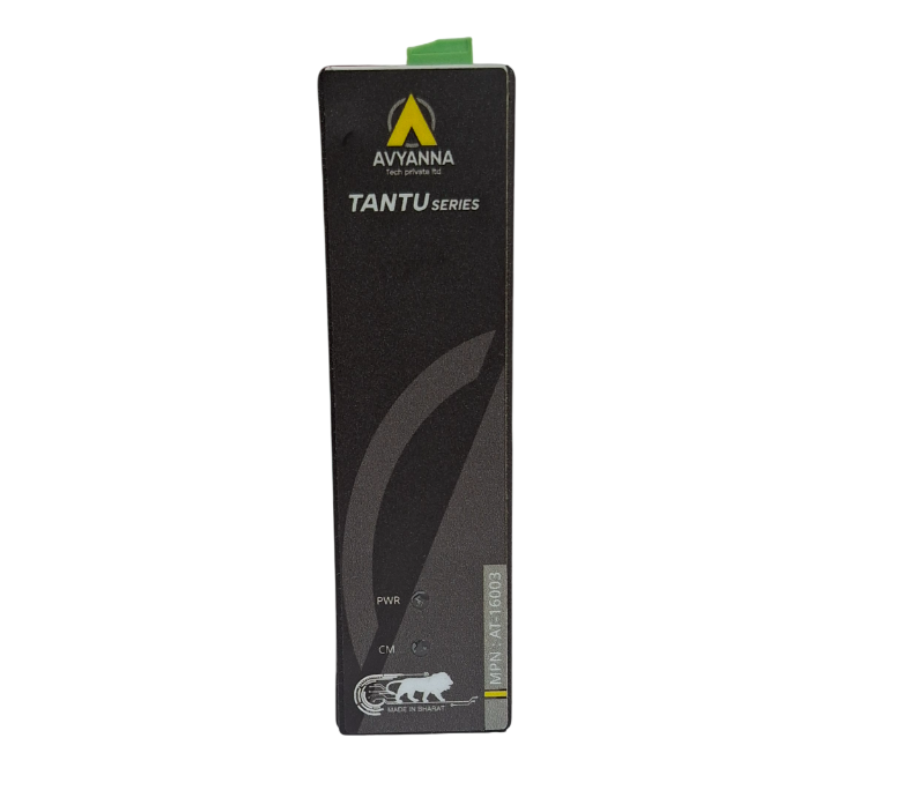

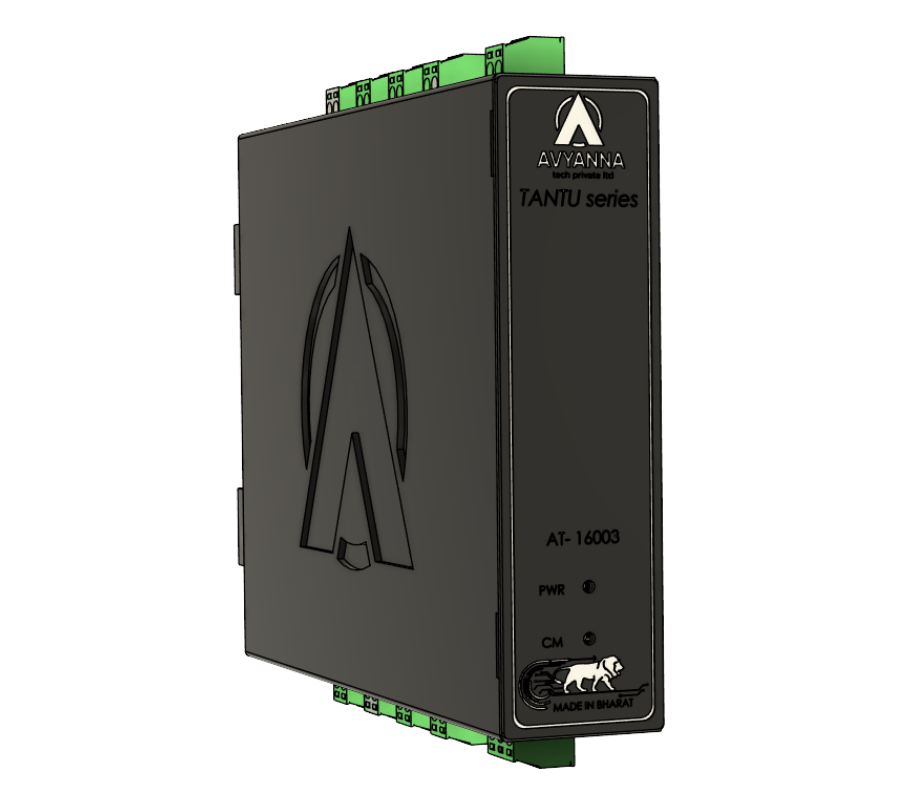

AT-16003 – 8-Channel Thermocouple Input Module with Modbus RTU
The AT-16003 is an 8-channel thermocouple input module designed for precise and reliable temperature measurement in industrial automation systems. Supporting a wide range of thermocouple types — K, J, N, R, S, T, B, and E — it offers flexibility for various process and environmental monitoring applications.
With a 19-bit resolution and an accuracy of ±0.7°C, the AT-16003 ensures highly stable and accurate readings across extensive temperature ranges (up to 1800°C depending on thermocouple type). It communicates over Modbus RTU (RS-485) and features Automatic Data Direction Control (ADDC) for smooth and efficient data exchange.

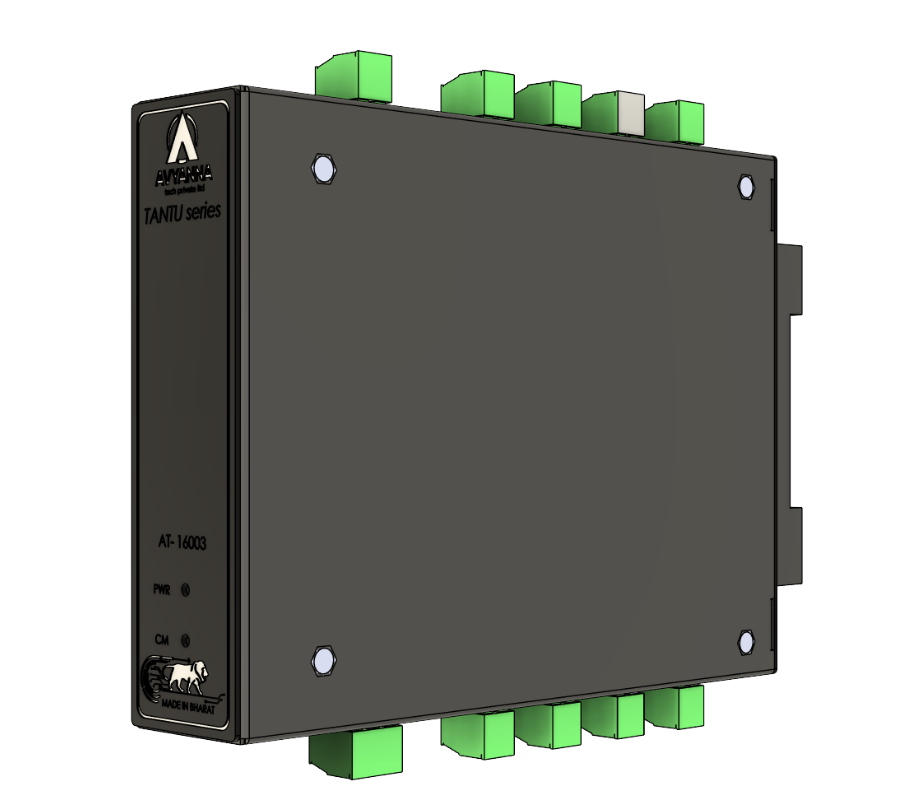

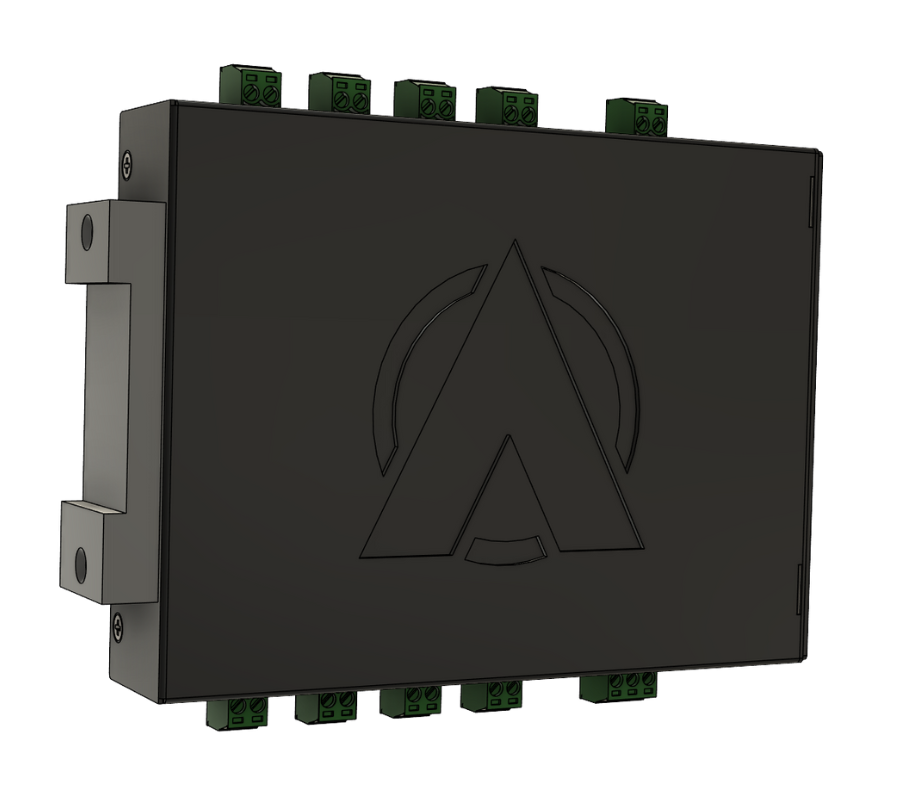

Built with galvanic isolation, TVS/ESD protection, and a rugged mild steel DIN-rail mountable enclosure, this module is ideal for harsh industrial environments requiring dependable temperature monitoring.
Communications
| Interface | RS-485 |
|---|
General

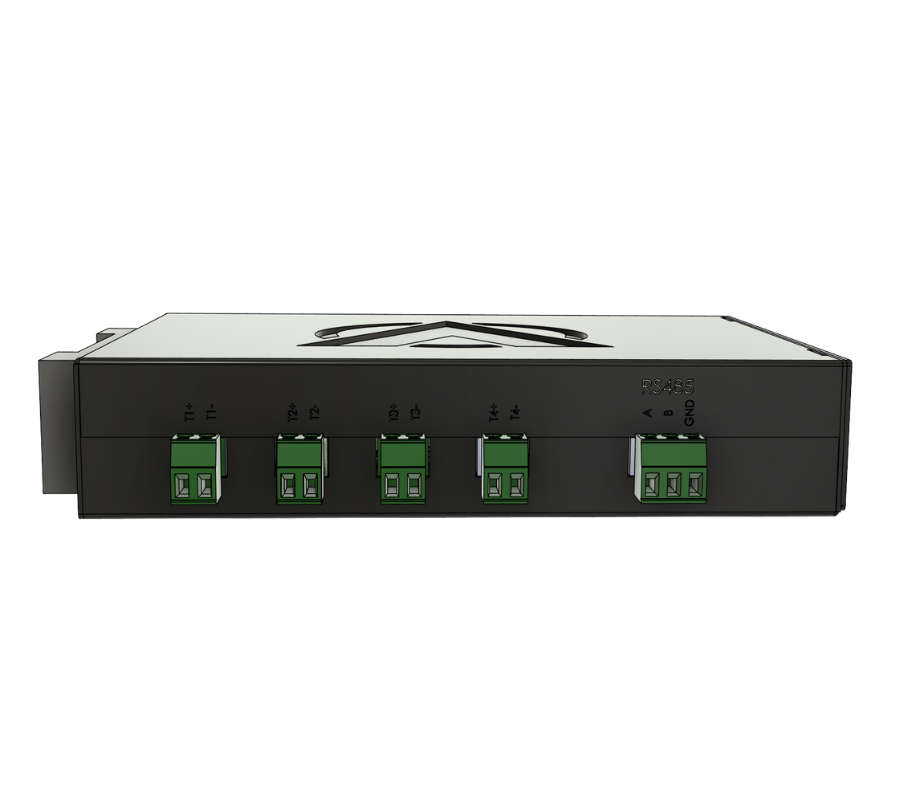

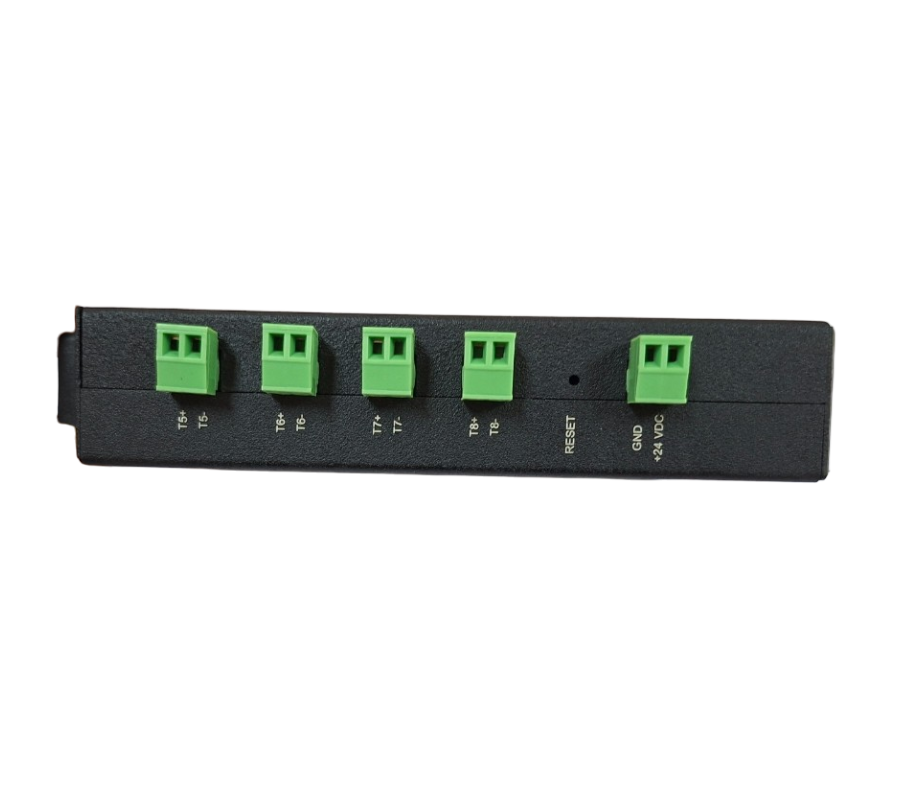

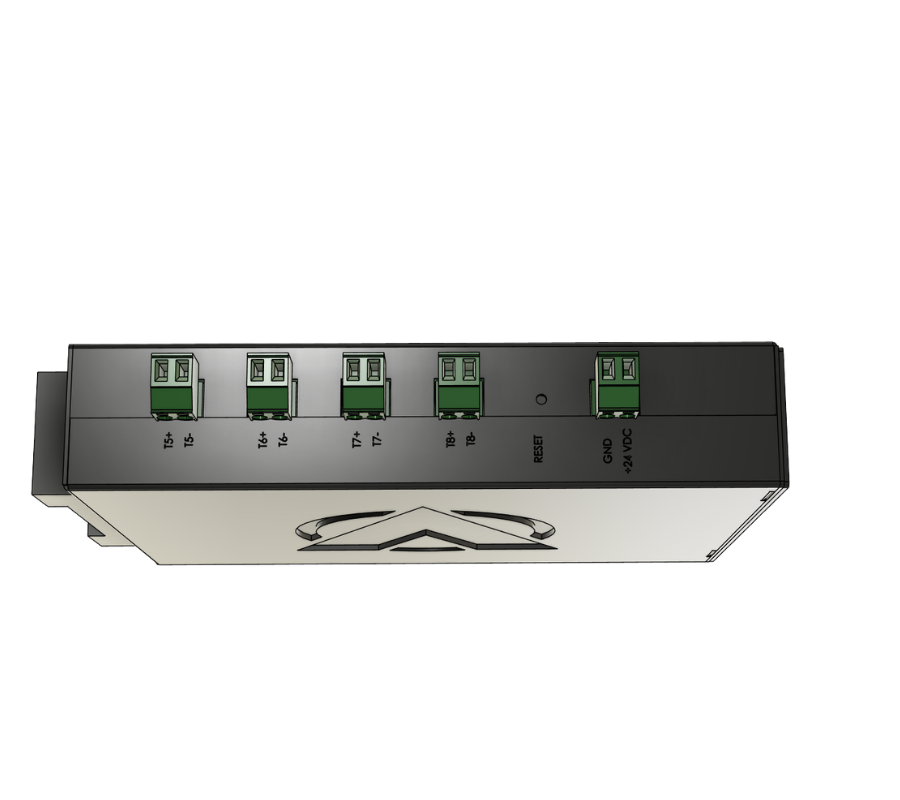

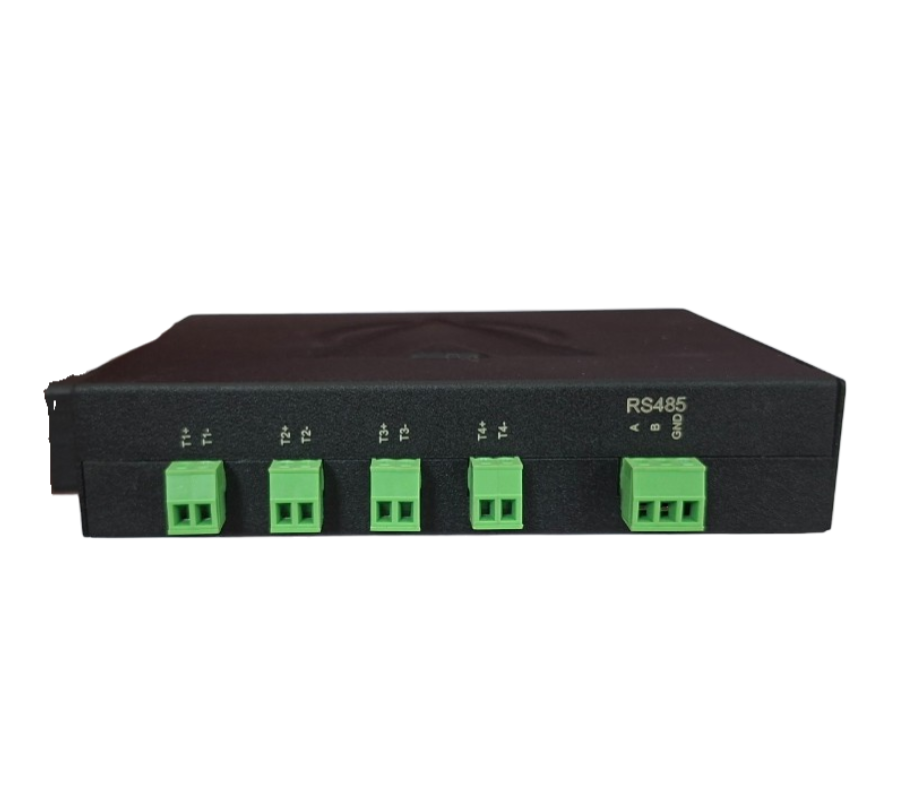

| Connectors | 2 x plug-in terminal block (#14~22 AWG) |
|---|---|
| Protocol | Modbus/RTU |
Thermocouple Input
| Number of Channels | 8 (differential) |
|---|---|
| Input Type | K, J, N, R, S, T, B, and E |
| Resolution | 19bit |
| Accuracy | ±0.7°C (max, -20°C to +85°C) Cold-Junction Accuracy |
Environment
| Galvanic Isolation | 2.5 kV |
|---|---|
| Operating Temperature | 0°C - 60°C |
Power Requirements
| Input Voltage | 9 – 36 VDC |
|---|
Standards and Certifications
| RoHS |
|---|
