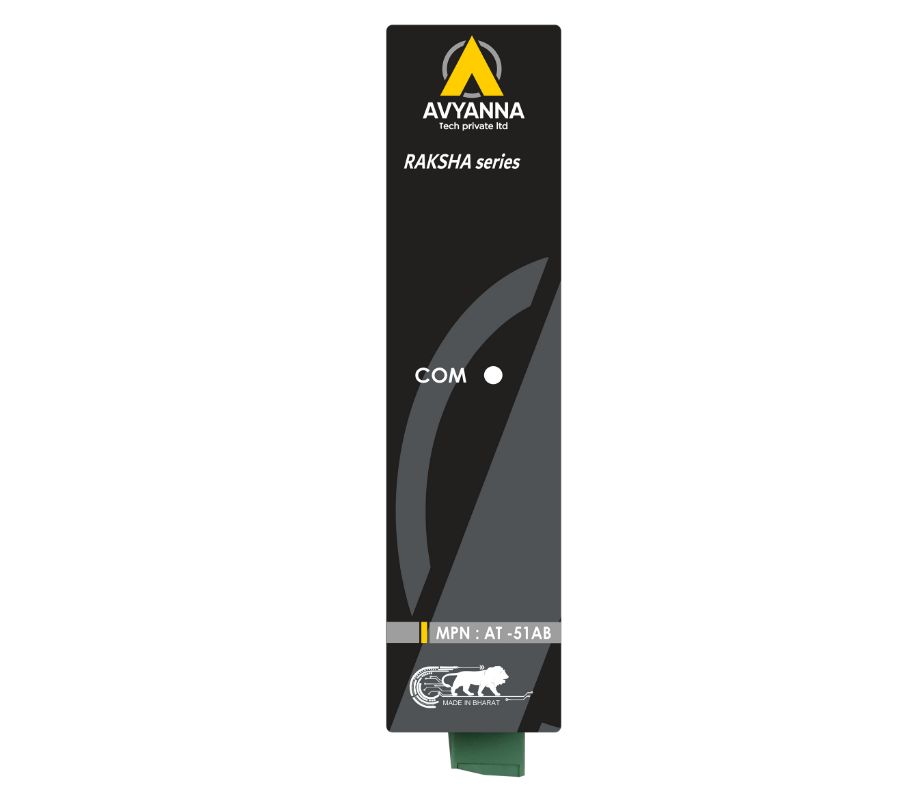

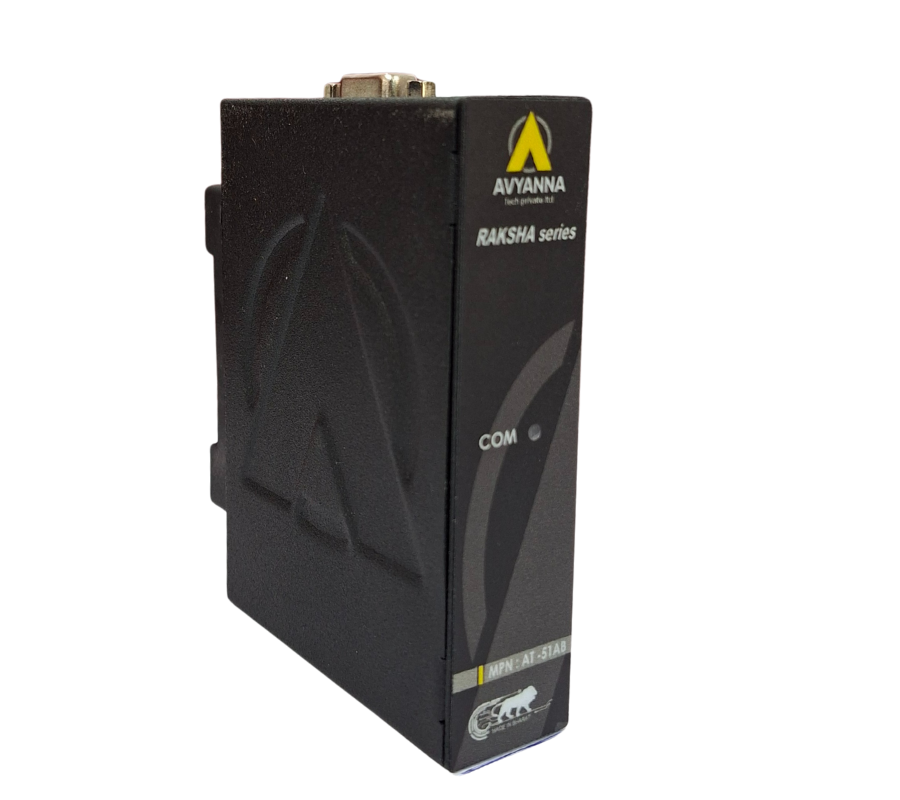

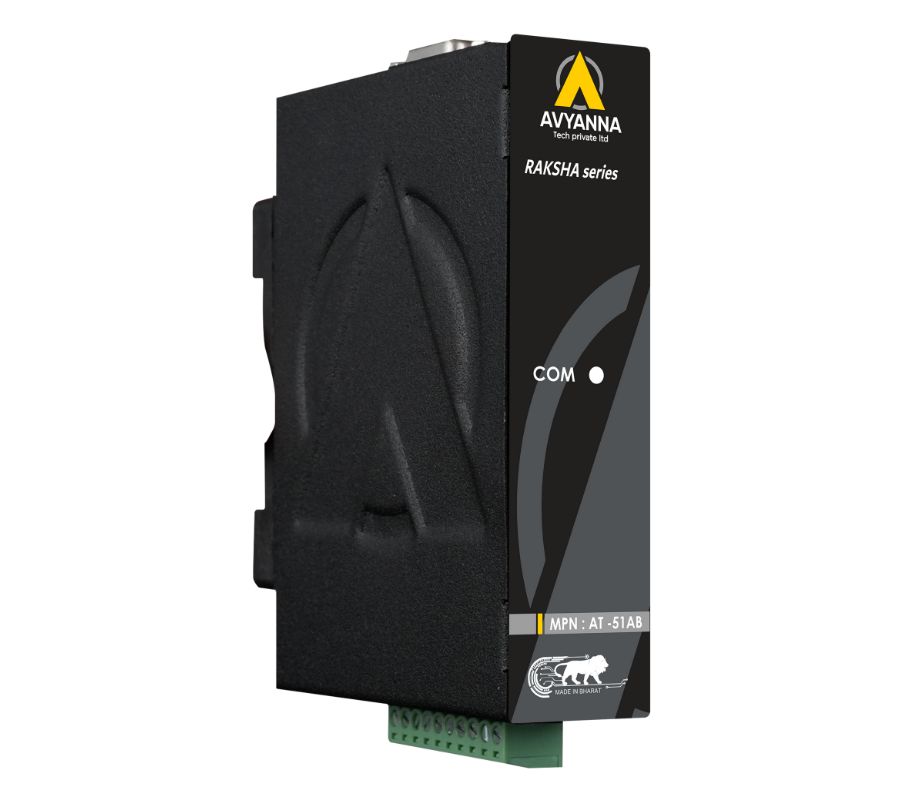

Data Converter
MPN: AT-5IAB
Features and Benefits
- Isolation Voltage Consumption (24VDC) 20mA
- RS232 terminal anti-surge TVS protection 600W/line
- Serial Communications Input RS-232 (DB9)
- Output RS-485 (2-wire) or RS-422 (4- wire)
- RS485/422 isolation is 1500VDC
Certifications
- Overview
- Specifications
Introducing our RS232 to RS485 Converter with isolation and switch-selectable baud rate, designed for seamless and secure industrial communication. Proudly Made in India, it ensures robust performance in automation, energy metering, and embedded system.
Power
| Operating Power Supply | 9–30 VDC wide range (24 V recommended) |
|---|---|
| Power Consumption | 20 mA @ 24 VDC |
Isolation & Protection
| Isolation Voltage | 1500 VDC (RS-485/422) |
|---|---|
| RS-485/422 Terminal Lightning Protection | 90 V, 2KA (8/20 µs) |
| RS-485/422 Anti-Surge TVS Protection | 600 W/line |
| RS-485/422 Protection Voltage | 6 V |
| RS-485/422 Overcurrent Resettable Fuse | 200 mA |
| S-232 Terminal Anti-Surge TVS Protection | 600 W/line |
Communication
| Input Interface | RS-232 (DB9-F connector) |
|---|---|
| Output Interface | RS-485 (2-wire) or RS-422 (4-wire) |
| Speed Modes (bps) | 9600 |
| Serial Communication Standard | RS-232 input to RS-485/RS-422 output |
Environmental Conditions
| Operating Temperature | -10°C to +70°C |
|---|---|
| Storage Temperature | -25°C to +85°C |
| Humidity | Up to 95% (non-condensing) |
Mechanical
| Dimensions (L × W × H) | 115 × 75 × 35 mm |
|---|---|

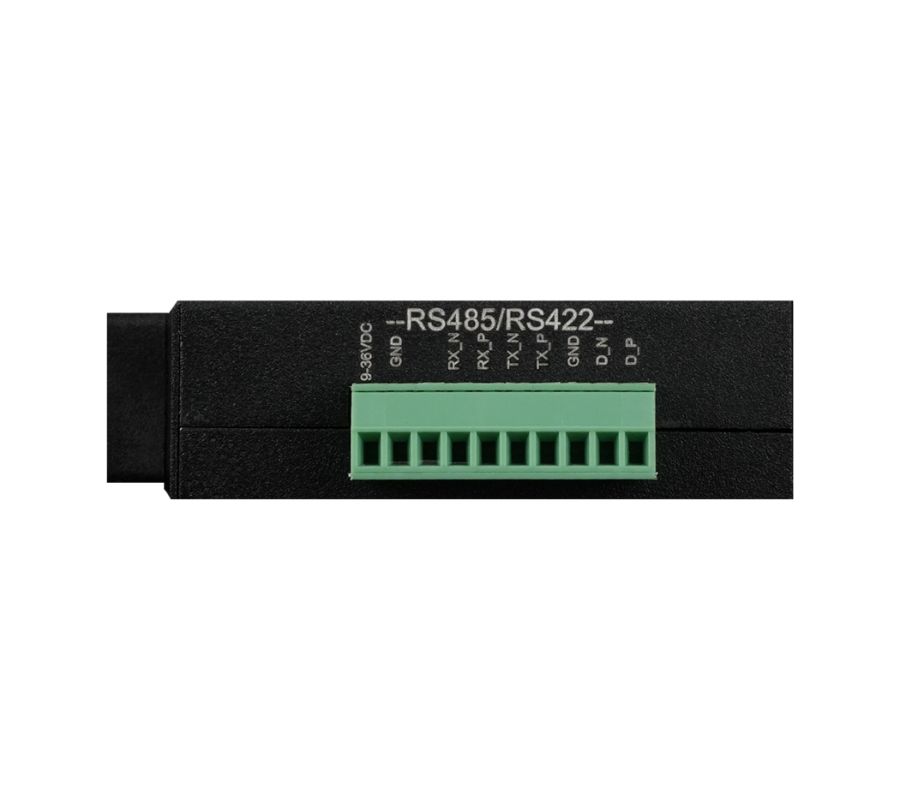

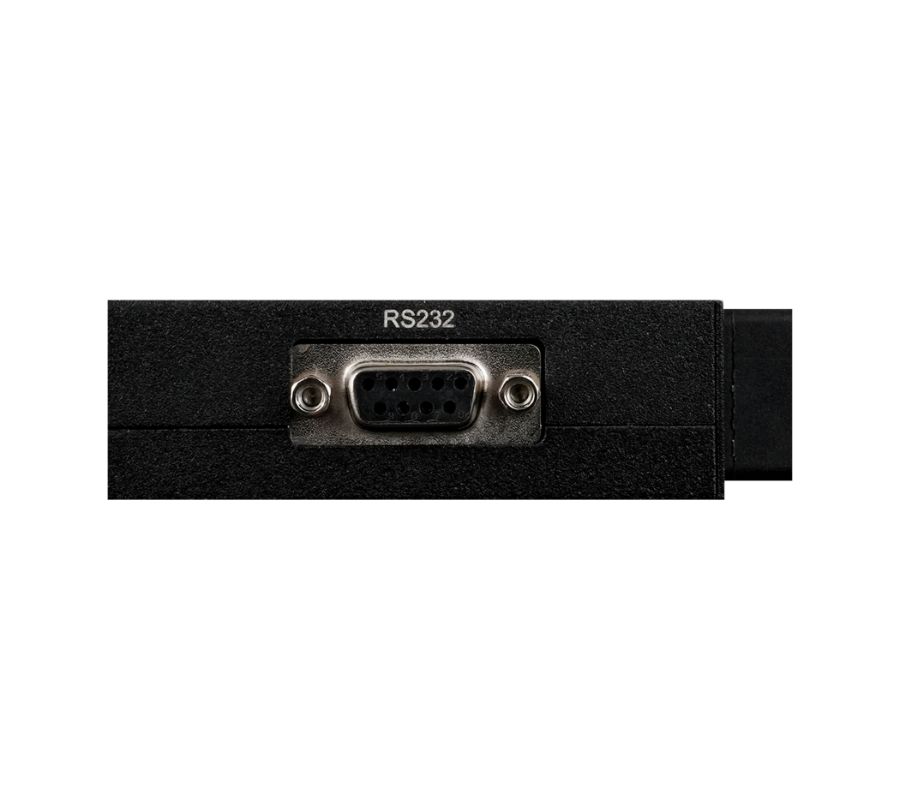

| Connectors: | 1 × Plug-in terminal block (#14–22 AWG) for RS-422/485 1 × DB9-F connector for RS-232 |
