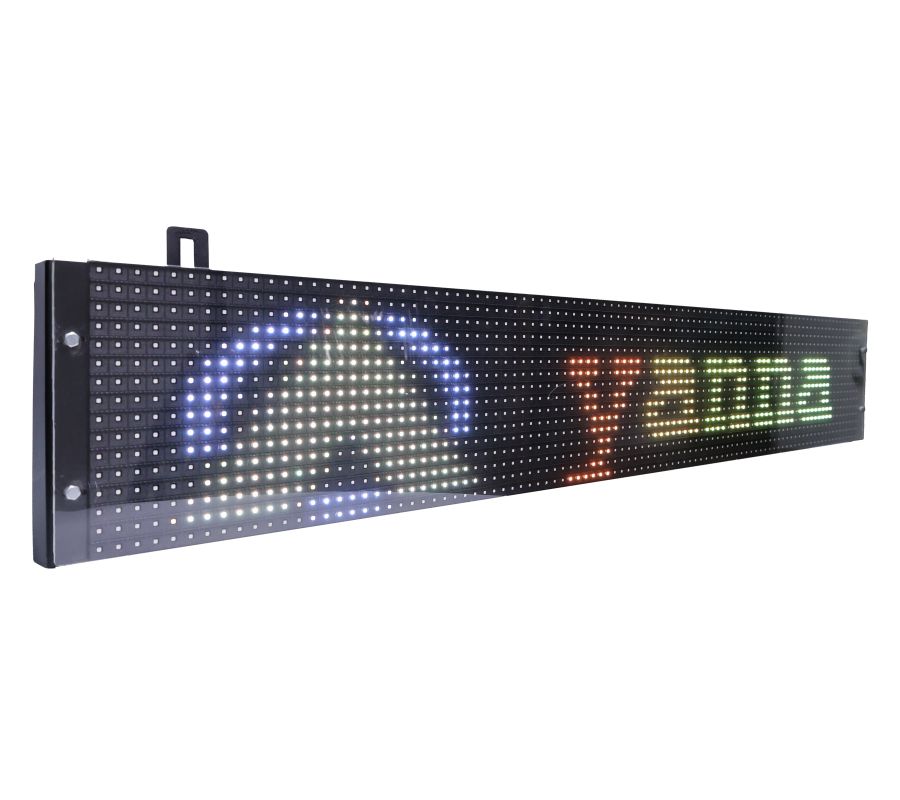

Multi-Color LED Rolling Display

MPN: AT-6

Product
Product 1 Product 2

Features and Benefits

  • Low Power Consumption due to efficient design
  • Wide viewing angle (120 H x 120 V)
  • Excellent readability even in difficult light conditions
  • Flicker free display
  • LED: PLCC2 SMD

Certifications

Datasheet
Get A Quote
  • Overview
  • Specifications
Contact Sales

The Rolling Display is a rugged, high-performance digital signage solution built for outdoor and industrial environments. With an IP65 rating for dust and water protection, it ensures reliable operation in harsh conditions. The display supports multiple languages and offers seamless control through a Java API for easy content management and integration. Ideal for dynamic advertisements, public notices, and real-time information, the Rolling Display excels in versatility and performance across a variety of applications.

General
Operation Rugged design for 24×7 continuous runtime
Protection UV protected front glass,
IP65 with protection under rain test
Mounting Wall or Pole mounting (optional)
Power
Power Supply 230VAC input ±10% (Built-in SMPS)
Power Consumption 50 Watt
Efficiency Low Power Consumption due to efficient design
Display
Display Type Flicker-free LED Display
LED Type PLCC2 SMD
Display Matrix Standard 16 x 96
Viewing Angle 120° (H) x 120° (V)
Brightness >1000 MCD
Communication & Interface
Communication Interface RJ45 Ethernet
Upgradability Supports IoT Module for Remote Monitoring and Control (Optional)
Software / Programming
API Language JAVA-based API
Languages Supported English, Hindi, Marathi, Odia, Kannada, Bengali
Max Text Length English: Up to 250 characters; Other Languages: 70–75 characters
Environmental

Specifications

Specification Tabs
General Information
Electrical Specifications
Structure
Environmental Specification
Operating Temperature 0°C – 60°C
Humidity 10% – 90% RH @ 40°C
Country of OriginIndia
RFID Frequency125 KHz
InstallationPlug-and-Play
Weight150g
Reading Distance1mm to 40mm
Communication InterfaceUSB
USB ClassHID
Port 2RS-485 : D+, D-, GND
Output FormatASCII (Decimal Tag Number)
Card / Tag SupportedEM-4100 Tags, Passive Tags
Compatible withWindows, Linux, Android, MAC
AntennaBuilt-in
Relative Humidity5% – 85%
Storage Temperature-5°C to 80°C
Operating Temperature0°C to 65°C
Operating Voltage5V @50mA (not required external supply)
