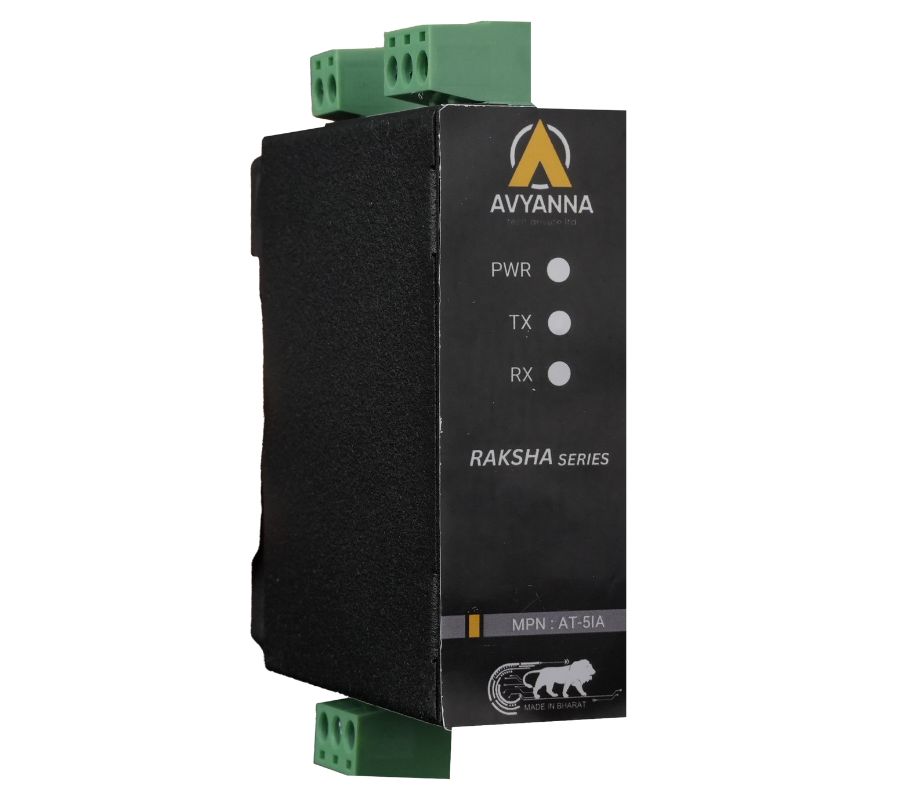

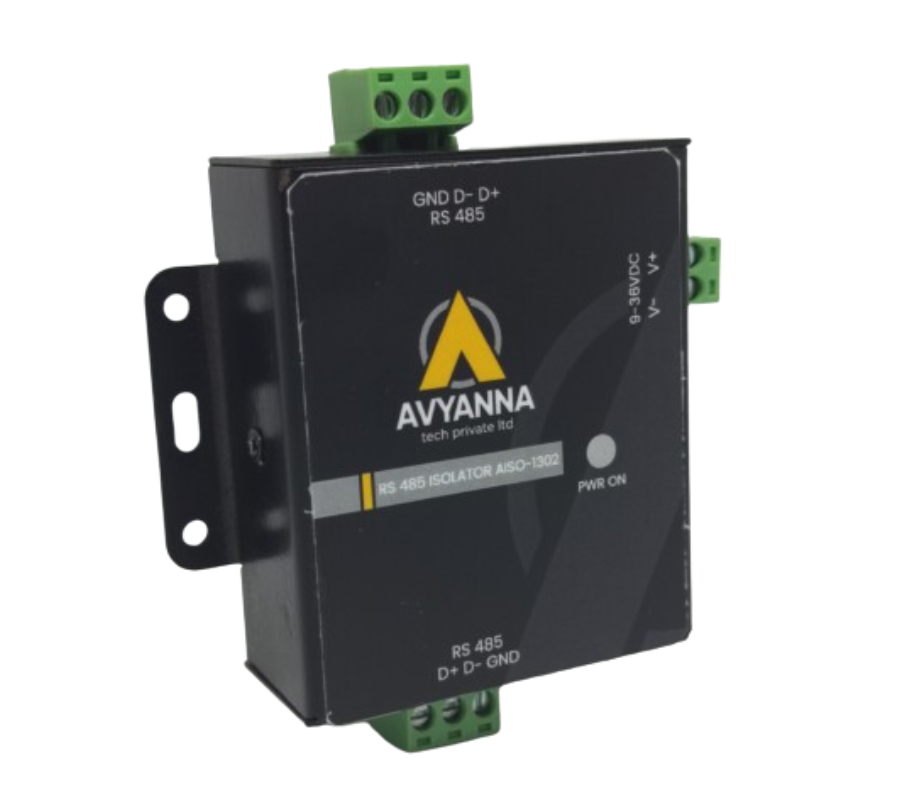

RS485 Isolators Repeater 3 port 1KV Optical Isolators
MPN: AT-5IA
Features and Benefits
- Current Consumption 10mA @24V
- Number of ports 2
- Serial Standards RS-485 compatible with EIA/TIA
- Protocol Modbus RTU/ASCII
- Supply Voltage 24 VDC
Certifications
- Overview
- Specifications
The RS 485/422 Isolator / Repeater – ISO 485/422 is primarily intended to provide complete Isolation between communication devices, so that they are protected against any inadvertent damage due to electrical disturbances. The ISO 485/422 also provides necessary immunity to a System against Electrical Noise Interferences and differential ground. The Product can also be used for extending the operational distance by acting as a Serial Repeater / Amplifier. ISO 485/422 is available as a compact unit enclosed in a metal casing, which takes power from the supplied Power adaptor. The Converter is populated with Surface Mount components for good reliability and to reduce the size. At the same time, it is equipped with good and reliable Isolation to Data signals. The repeater is designed to be plug-and-play and does not require any additional configuration or settings.
Power Parameters
| No. of Power Inputs | 1 |
|---|---|
| Supply Voltage | 24 VDC |
| Current Consumption | 10mA @ 24V |
| Reverse Voltage / ESD Protection | Yes |
| Short Circuit Protection | Yes |
| Power Isolation | 1.5 kV Galvanic |

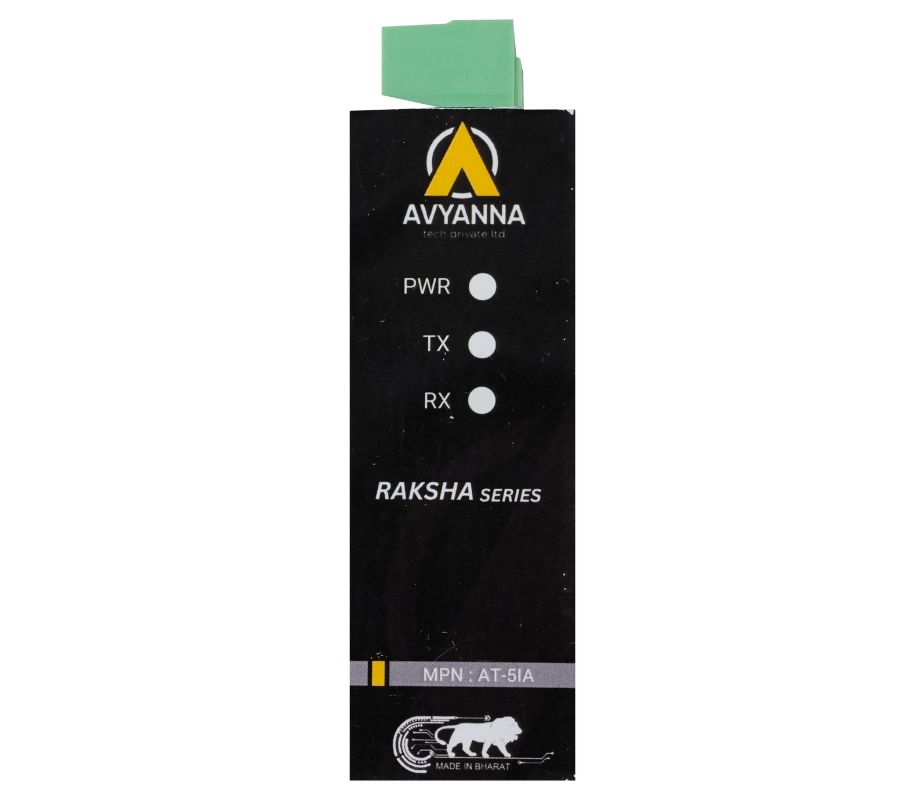

| Indications | Power ON, TxD, RxD |
Environmental Limits
| Operating Temperature | 0°C to 75°C |
|---|---|
| Storage Temperature | -10°C to 85°C |
| Ambient Relative Humidity | 10% to 95% (non-condensing) |
| Certifications | RoHS |
| IP Class | IP-54 |
Physical Characteristics
| Housing | Metal |
|---|---|
| Dimensions (H × L × W) | 96.80 mm × 78.15 mm × 34.08 mm |
| Weight | 180 g |
| Installation | DIN-rail mounting; Panel mounting (optional, drawing on request) |
| MTBF Time | 80,000 hrs (Telcordia/Bellcore Standard) |
Serial Specification
| Number of Ports | 2 |
|---|---|

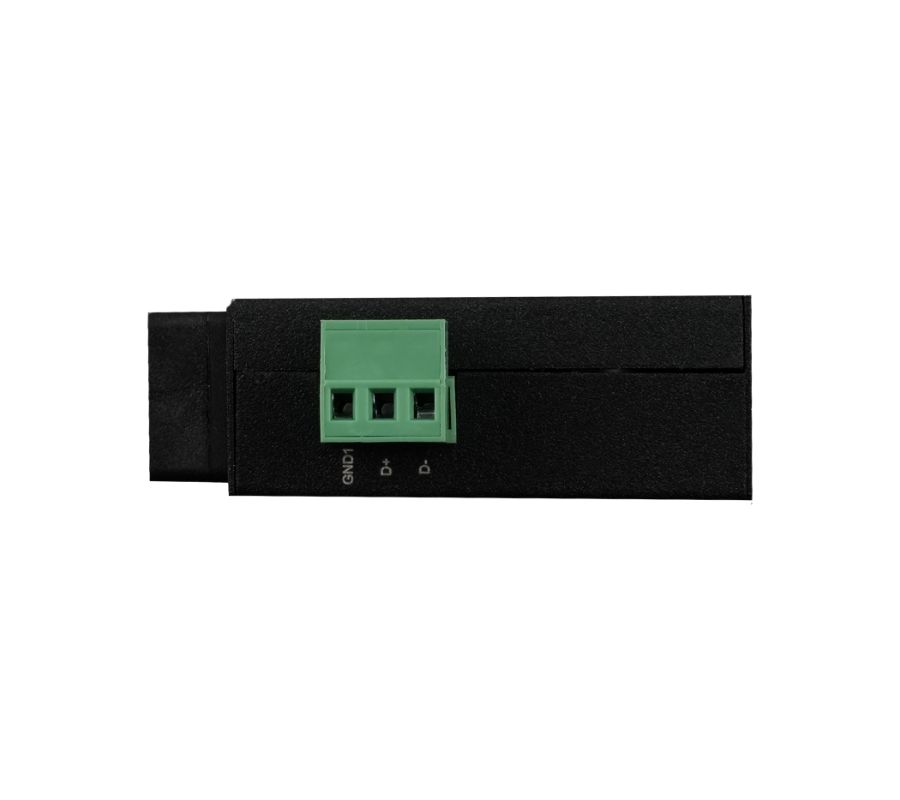

| Port 1 | RS-485: D+, D-, GND |

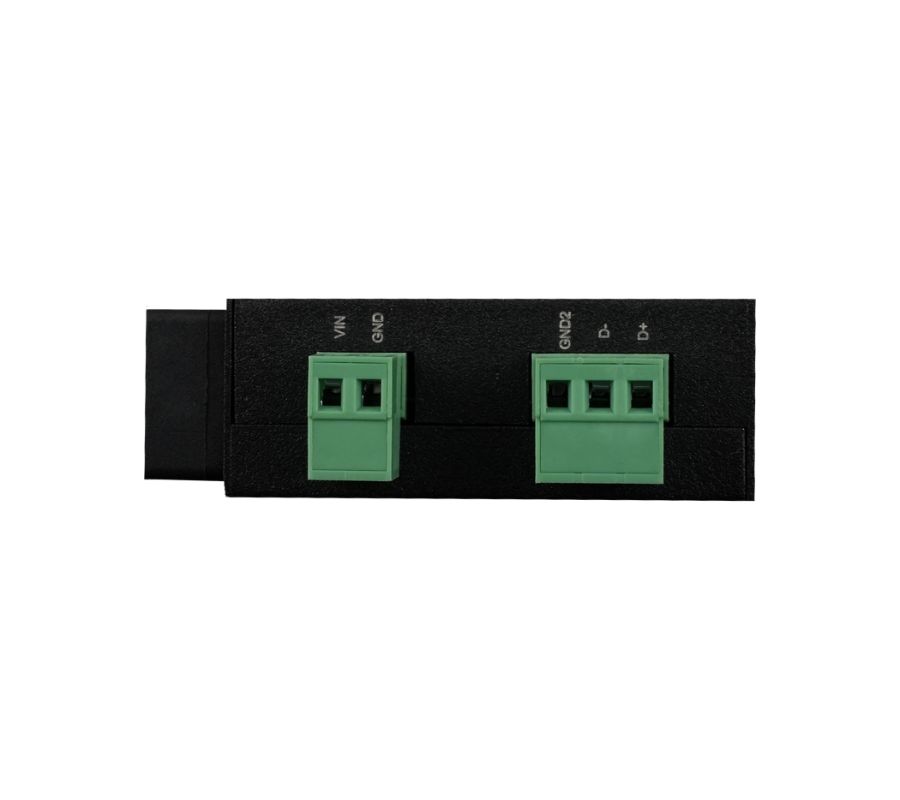

| Port 2 | RS-485: D+, D-, GND |
| Serial Standards | RS-485 compatible with EIA/TIA |
| Isolation for Serial Ports | Optical Isolation |
| Baud Rate Supported | 0 to 128000 bps (self-adaptive) |
| Protocol | Modbus RTU / ASCII |
| Transmission Mode | Bi-Directional, Half-Duplex |
| RS-485 Data Direction Control | ADDC (Automatic Data Direction Control) |
| Surge Suppression | Method: TVS; Rating: 6.5V, Bi-Directional, 600W peak; Lines Protected: Data Lines (Input/Output) |
| Reverse Voltage / ESD Protection for RS-485 | Yes |
| Warranty | 12 Months |
