Serial to Server – MODBUS

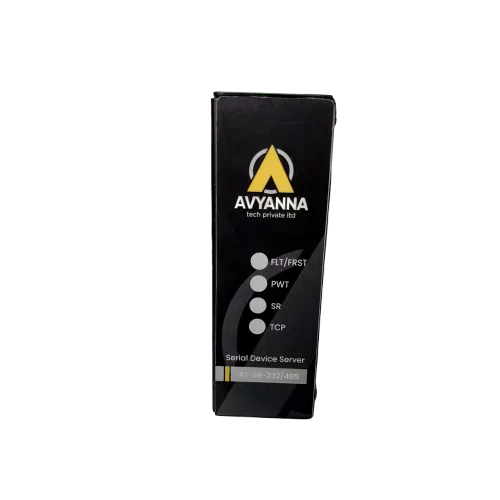

AT-SR-232/485-M
The Serial Device Server that can make serial device be equipped with networking capability instantly. It centrally manages the scattered serial device and hosts via network. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC.It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrumentand enviromental forces monitoring system.
Specifications
Configuration Tool
Electrical Specification
Warranty
Environmental Specification
| Configuration Tool | WEB Configuration Management |
| Serial Standards | RS-232/RS-485 |
| MODBUS Support | Yes |
| Baud Rate | Custom (Default 115200) |
| Parity | Custom None, Even, Odd |
| Data Bits | Custom 8, 9 bit (including parity)td> |
| Serial Signal | RS-232: TxD, RxD, RTS, CTS, GND & RS-485: 2W D+, D-, GND |
| Reverse Voltage/ESD Protection for RS-485 | Yes |
| Warranty | 1 Year |
| Galvanic Isolation | 2.5 kV |
| RS-485 Data Direction Control | ADDC (Automatic Data Direction Control) |
| Terminating Resistor for RS-485 | 120 ohm |
