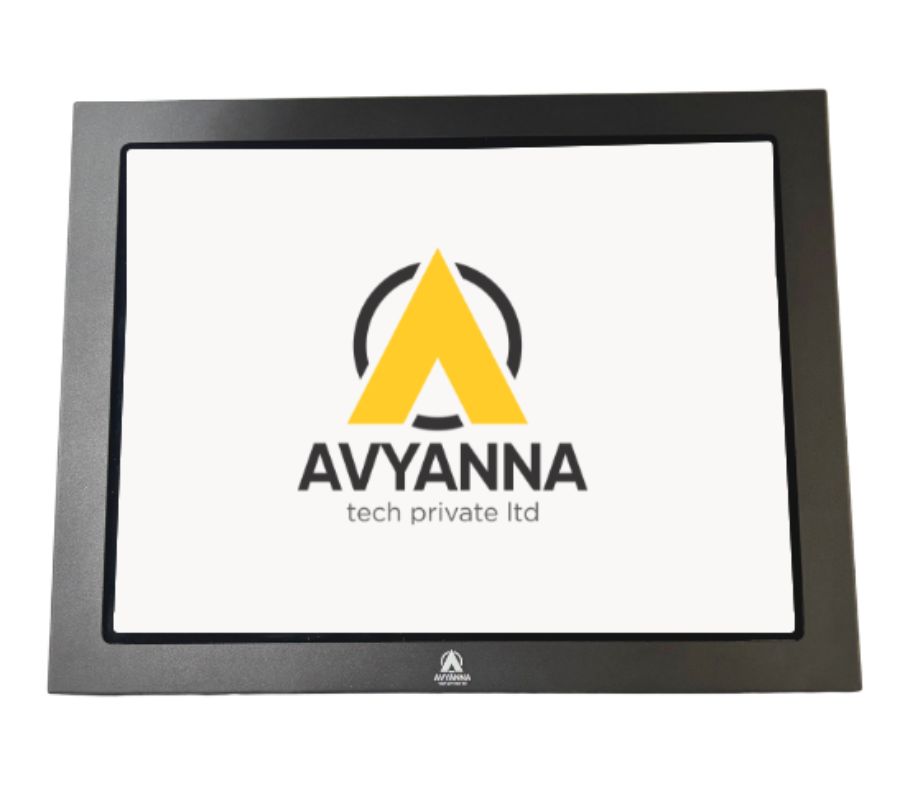

21.5" Industrial Full HD LED Display
MPN: AT-08-2151-i5
Features and Benefits
- IP65-rated front panel
- 21.5″ Full HD LED display supports capacitive multi-touch input
- Max. Resolution 1920 x 1080
- 0° C ~ +50° C range operating temperature
- Signal interface with HDMI
- Brightness solution of 300 cd/m²
Certifications
- Overview
- Specifications
AT-08-2151-i5 – 21.5" Industrial Full HD LED Display
The AT-08-215CT is a 21.5-inch Industrial LED Display designed for high-performance visualization and reliability in industrial environments. Featuring a Full HD resolution (1920 × 1080), wide 85° viewing angles, and 300 cd/m² brightness, it delivers crisp and vibrant visuals for monitoring and control applications. The capacitive touchscreen ensures precise, smooth interaction, making it ideal for modern touch-based control systems.
Built with a rugged IP65-rated front panel and VESA mounting support, the display is suitable for both panel and wall installations. With HDMI and dual USB 2.0 interfaces, it offers seamless connectivity with industrial PCs, HMIs, and embedded control units. The robust black-finish body and wide operating temperature range ensure durability and consistent performance in demanding environments.
Display
| Display Type | LED |
|---|---|
| Display Size | 21.5 inches |
| Contrast Ratio | 1000:1 (Typ) |
| Max. Resolution | 1920 × 1080 |
| Max. Color | 16.7M colors |
| Active Area | 476.064(H) × 267.786(V) mm |
| Pixel Pitch | 0.24795(H) × 0.24795(V) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 85/85/85/85 (Typ.) (CR ≥ 10) |
| Luminance | 300 cd/m² |
Touchscreen
| Touchscreen Type | Capacitive Touch |
|---|
I/O Interface
| External I/O | 2× USB 2.0, 1× HDMI |
|---|
Power
| Power Input | 230V AC |
|---|---|
| Max. Current | 1.5 A (Typ.) |
| Max. Power | 200 W (Typ.) |
Mechanical
| Dimensions (H × W × D) | 310 × 518 × 80 mm (Approx.) |
|---|---|
| Weight | 10 Kgs (Approx.) |
| Mounting | VESA Mount |
| External Finish | Black |
Environment
| Operating Temperature | 0°C to 50°C |
|---|---|
| Storage Temperature | -10°C to 60°C |
| Humidity | 5% to 95% RH (non-condensing @40°C) |
| Ingress Protection | IP65 – Front Panel, Rest IP40 Rated – Complied |
Certifications
| Certification | CE, FCC – Complied |
|---|
Resources Content
Model Content
Specifications
General Information
Electrical Specifications
Structure
Environmental Specification
| Country of Origin | India |
| RFID Frequency | 125 KHz |
| Installation | Plug-and-Play |
| Weight | 150g |
| Reading Distance | 1mm to 40mm |
| Communication Interface | USB |
| USB Class | HID |
| Port 2 | RS-485 : D+, D-, GND |
| Output Format | ASCII (Decimal Tag Number) |
| Card / Tag Supported | EM-4100 Tags, Passive Tags |
| Compatible with | Windows, Linux, Android, MAC |
| Antenna | Built-in |
| Relative Humidity | 5% – 85% |
| Storage Temperature | -5°C to 80°C |
| Operating Temperature | 0°C to 65°C |
| Operating Voltage | 5V @50mA (not required external supply) |
