Rolling Display
AT-RD-ETH-V0

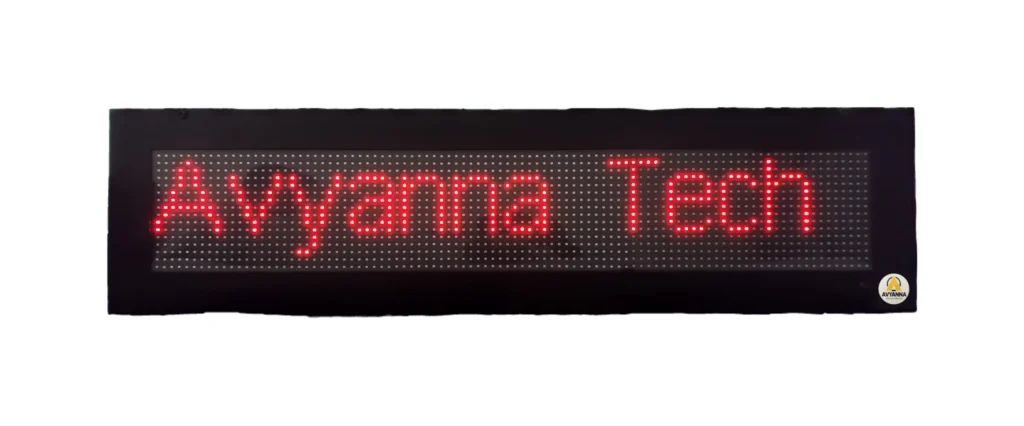

IP65 Rolling Display with Ethernet Interface
IP65 Rolling Display with Ethernet Interface
Specifications
General
Power
Display Dimensions
LED Specs
Communication
Additional Features
| Low Power Consumption | Due to efficient design |
| Viewing Angle | 120 H x 120 V |
| Readability | Excellent even in difficult light conditions |
| Flicker Free Display | Yes |
| LED Type | PLCC2 SMD |
| Standard Display Matrix | 16 x 96 |
| Power Supply | 230VAC input ± 10 %. Built-in Switch Mode Power Supply |
| Power Consumption | 50 watt |
| Display Dimension | 97.5 cm (L) x 16 cm (H) x 3 cm (D) APPROX |
| Display Dimension with Bezels | 110 cm (L) x 27.4 cm (H) x 11.5 cm (D) APPROX |
| LED Color | High intensity Amber, Red or as per requirement |
| Brightness | >1000 MCD |
| Visual Effect | Fixed, scrolling |
| Physical Communication Interface | RJ45 Ethernet |
| Protection | UV protected front glass, IP65 with protection under rain test |
| Programming Language | JAVA Programming language-based API |
| Rugged Application | 24 x 7 runtime |
| Operating Temperature | 0 – 60°C |
| Humidity | 10 to 90% RH at 40°C (365 days operation) |
| Remote Monitoring | Can be upgraded by addition of IoT Module (Optional) |
| Languages Supported | English, Hindi, Marathi, Odia, Kannada, Bengali |
| Max Length | English [Up to 250 char], Other languages [up to 70 to 75 char] |
